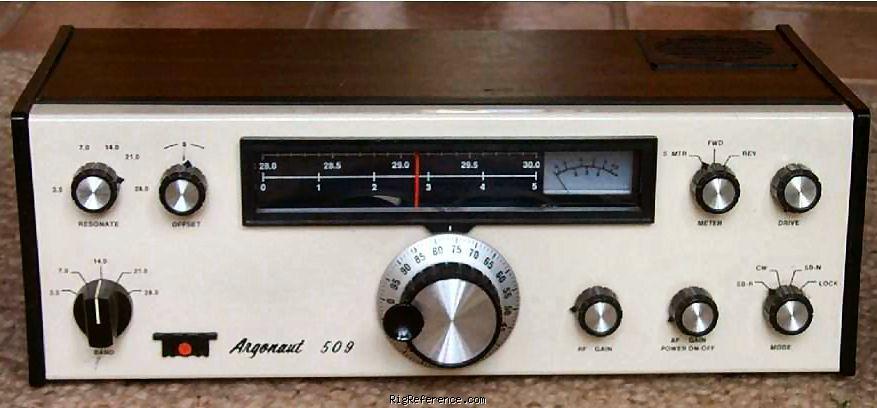

Ten-Tec Argonaut (509)

Desktop Shortwave Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

For the manual:
The Argonaut opens a whole new world of excitement and fun in Amateur Radio. We think you will find QRP a welcome change. Five watts are only 2-1/2 S-units below 150 watts for the same conditions. When skip is favorable and QRM light, you will not be conscious of using low power.

The small size (1/5 cubic foot) makes it ideal for portable operation in a motel, camper, trailer, or mobile operation in your car, boat or plane. As a result of its low power requirements, a 12 volt lantern or automobile battery will provide many, many operating hours. An ac pack, available as an accessory, will provide 117 V AC operation. You can choose ssb or cw on any ham band between 3.5 and 30 MHz.

General characteristics

HAM bands: 80m 40m 20m 15m 10m
Frequency stability: < 100 Hz @ 10.5 to 14 VDC
Tuning steps: ?
Memories: ?

Receiver

RX-range: 10-80m
Modulations: CW USB LSB
Sensitivity: < 0.5 µV for 10 dB S+N/N
Selectivity: 2.4 kHz at 6 dB down; 1.7:1 shape factor at 6/50 dB
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 1 W @ 8 ohms, < 2% distortion

Transmitter

TX-range: 10-80m
Modulations: CW USB LSB
RF-output: 3W

Connections

Antenna: Clamps / screws
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 12 V DC
Current drain RX: 150 mA max
TX: 1 A

Physical

Dimensions (w×h×d): 330 × 115 × 180 mm (12.99 × 4.53 × 7.09 in)
Weight: 2.70 kg (6.0 lbs)
Form factor: Base Station
Manufactured: Between 1973 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 4156
MPN: TEN-TEC-ARGONAUT-(000509)

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Ten-Tec 509 Argonaut Operator's Manual PDF - 3.71 MB, submitted by Gerd

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ten-Tec Argonaut (509). Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Ten-Tec Argonaut (509) is around:

USD 125 ~ USD 233

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
