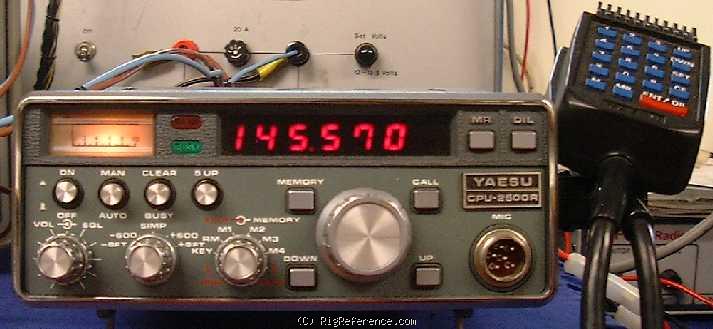

Yaesu CPU-2500R

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Yaesu CPU-2500R is a Mobile VHF Transceiver. It covers 144-148 MHz for both transmit and receive with 5 kHz tuning steps. The receiver system is a Double conversion superheterodyne with IF frequencies of 1st: 10.7 MHz and 2nd: 455 kHz. RF output is selectable between High: 25 W and Low: 3 W. It requires 13.8V DC ±10% and draws 0.5 A max in receive and 6 A max in transmit. Dimensions are 72 × 180 × 270 mm and the unit weighs 3.2 kg.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: 5 kHz
Memories: ?

Receiver

RX-range: 144-148 MHz
Modulations: FM
Sensitivity: 0.3 µV
Selectivity: ± 6 kHz @ -6 dB
± 12 kHz @ -60 dB
Filters: ?
Receiver system: Double conversion superheterodyne
IF-frequencies: 1st: 10.7 MHz
2nd: 455 kHz
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-148 MHz
Modulations: FM
RF-output: High: 25 W, Low: 3 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC ±10%
Current drain RX: 0.5 A max
TX: 6 A max

Physical

Dimensions (w×h×d): 180 × 72 × 270 mm (7.09 × 2.83 × 10.63 in)
Weight: 3.20 kg (7.1 lbs)
Form factor: Mobile
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: 1750 Hz (Europe)
1800 Hz (USA)
Accessories: -
RigReference ID: 4205
MPN: YAESU-CPU-002500R
