Yaesu FR-50B

Desktop Shortwave receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Yaesu FR-50B rigs and spare parts on eBay Find the Yaesu FR-50B on Amazon
We receive a small fee when you buy through these links, thank you!

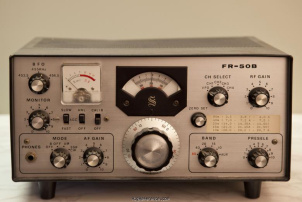

The Yaesu FR-50B came with a slightly unusual RCA antenna connector. Most users replaced it with a more common SO239 (as in the image above). The screw terminals on the back are for speakers and MUTE functions.
Stability was actually good for being all tube radio. Selectivity was poor by today's standard. It was just OK back then.

There was an option to have an crystal controller fixed channel switches (located on right of the frequency display window).

It is uncertain whether or not the rig supported AM mode. Can anyone confirm?

Frequency range

RX-range
80-10 m + WWV option
TX-range
-
HAM bands
80m  40m  20m  15m  10m
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   CW   SSB
Sensitivity
SSB: ≤ 0.5 µV S/N 10 dB
AM: ≤ 1 µV S/N 10 dB
Selectivity
1.5 kHz @ -6 dB
5 kHz @ -50 dB
Receiver system
?
IF-frequencies
?
Image rejection
≥ 50 dB
Audio output
1 W for 8 Ohm / 600 Ohm

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
RCA
Impedance
50Ω

Electrical

Power requirements
Mains
Current drain RX
N/A
TX
-

Physical

Dimensions (w×h×d)
335 × 153 × 260 mm (13.19 × 6.02 × 10.24 in)
Weight
8.00 kg (17.7 lbs)
Form factor
Base Station
Manufactured
Between 1969 and 1973 in Japan
MPN
YAESU-FR-000050B

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
BFO
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Yaesu FR-50B user manuals on eBay #ad

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Yaesu FR-50B. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FR-50B is around:

  • GBP 0.00
Year Historic price Condition Submitted by
2019 GBP 0.00 New / Mint John
2009 GBP 35.00 Used / Good ledtoe
