Yaesu FR-50B

Desktop Shortwave receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

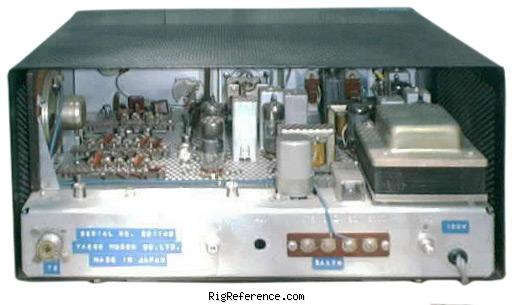

The Yaesu FR-50B came with a slightly unusual RCA antenna connector. Most users replaced it with a more common SO239 (as in the image above). The screw terminals on the back are for speakers and MUTE functions.
Stability was actually good for being all tube radio. Selectivity was poor by today's standard. It was just OK back then.

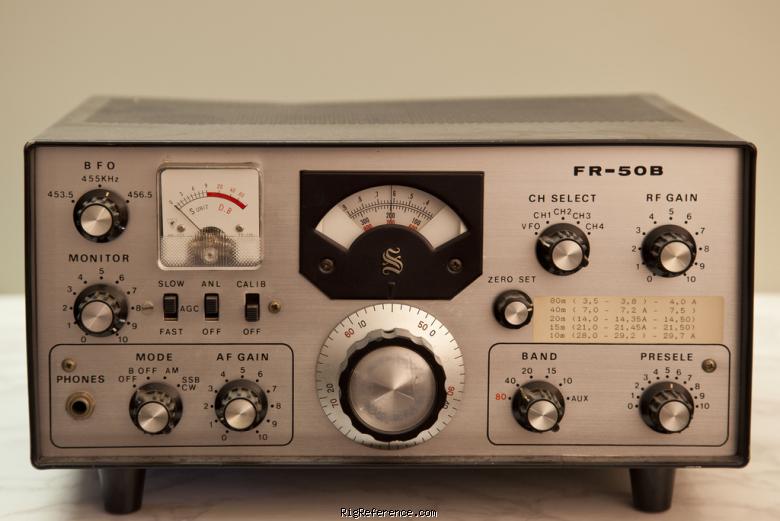

There was an option to have an crystal controller fixed channel switches (located on right of the frequency display window).

It is uncertain whether or not the rig supported AM mode. Can anyone confirm?

General characteristics

HAM bands
80m  40m  20m  15m  10m
Frequency stability
?
Tuning steps
?

Receiver

RX-range
80-10 m + WWV option
Modulations
AM   CW   SSB
Sensitivity
SSB: ≤ 0.5 µV S/N 10 dB
AM: ≤ 1 µV S/N 10 dB
Selectivity
1.5 kHz @ -6 dB
5 kHz @ -50 dB
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
≥ 50 dB
Audio output
1 W for 8 Ohm / 600 Ohm

Connections

Antenna
RCA
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
N/A
TX
-

Physical

Manufactured
Between 1969 and 1973 in Japan
Dimensions (w×h×d)
335 × 153 × 260 mm (13.19 × 6.02 × 10.24 in)
Weight
8.00 kg (17.7 lbs)
Form factor
Base Station

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
BFO
Accessories
?
MPN
YAESU-FR-000050B

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Yaesu FR-50B user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FR-50B. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FR-50B is around:

  • GBP 11.00
Year Historic price Condition Submitted by
2009 GBP 35.00 Used / Good ledtoe
