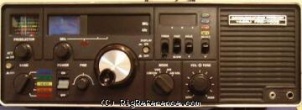

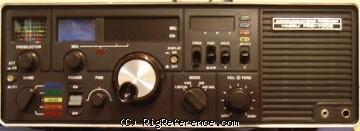

This successor to the famous FRG-7 afforded digital readout, but less performance.

Price when new was between $599 and $655.

General characteristics

HAM bands
?
Frequency stability
±500Hz per 30 minutes after warm-up
Tuning steps
?
Memories
?

Receiver

RX-range
0.25-29.9 MHz
Modulations
AM   CW   USB   LSB
Sensitivity
0.7 µV 2-30 MHz, SSB/CW (S+N/N=10dB)
Selectivity
AM 6.0 kHz, SSB/CW 3 kHz
Filters
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
2 Watts at 4 Ohms

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains (100/110/117/200/220/234 VAC 50/60 Hz)
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
360 × 125 × 295 mm (14.17 × 4.92 × 11.61 in)
Weight
7.00 kg (15.4 lbs)
Form factor
Base Station
Manufactured
Between 1977 and 1980 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
ANL (Automatic Noise Limiting)
Attenuator
Carry handle
Digital clock timer
Digital display
Fine tuning
Mute line
Pre-selector
Record jack
Recorder activation jacks
S-Meter
Tone control
¼" Headphones jack
Accessories
-
RigReference ID
4220
MPN
YAESU-FRG-007000

Manuals, diagrams and brochures

Yaesu FRG-7000 Schematic Diagram PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
Basic HF receiver 11 years ago by elmer

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FRG-7000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FRG-7000 is around:

  • EUR 19.00
  • GBP 88.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 GBP 89.00 Used / Okay valvepc
2007 EUR 95.00 Used / Good elmer
