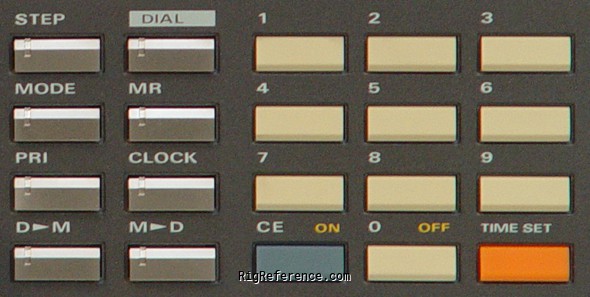

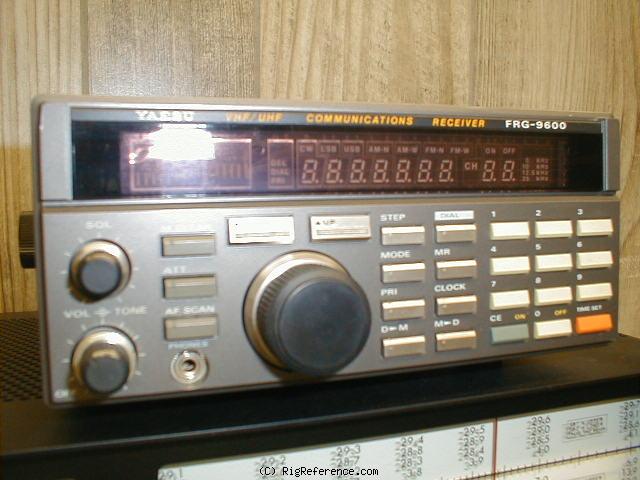

The Yaesu FRG-9600 VHF-UHF receiver covers from 60 to 905 MHz in the following modes: AM, AM-W, FM-W, FM-N, USB and LSB. Seven tuning rates, ranging from 100 Hz to 100 kHz, are available. Enjoy a total of 100 memories organized in ten banks of ten. You may also enter frequencies directly via the numeric keypad or simply tune the manual VFO knob.

General characteristics

HAM bands
2m  1.25m  70cm  4m
Frequency stability
?
Tuning steps
0.1 / 1 / 5 / 10 / 12.5 / 25 kHz
Memories
100 channels in 10 bank(s)

Receiver

RX-range
60-905 MHz (SSB between 60-460 MHz)
Modulations
N-AM   W-AM   N-FM   W-FM   USB   LSB
Sensitivity
AM-N: 1 µV (10 dB S+N/N)
AM-W: 1.5 µV (10 dB S+N/N)
FM: 0.5 µV (12 dB SINAD)
W-FM: 1 µV (12 dB SINAD)
Selectivity
N-FM: 15 kHz
W-FM: 180 kHz
N-AM: 2.4 kHz
W-AM: 6 kHz
SSB: 2.4 kHz
Filters
2.4 / 6 / 15 / 180 kHz
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 45.754 MHz
2nd: 10.7 MHz
3rd: 455 KHz - Ceramic filter: Murata CFW455E
Image rejection
?
Audio output
1 W @ 8 ohms

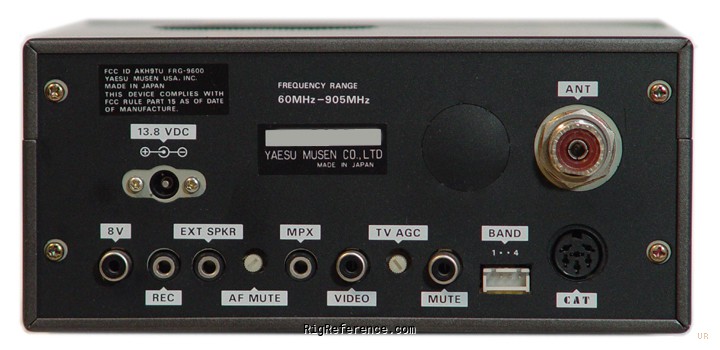

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
12-15V DC
Current drain RX
550 mA max
TX
-

Physical

Dimensions (w×h×d)
180 × 80 × 220 mm (7.09 × 3.15 × 8.66 in)
Weight
2.20 kg (4.9 lbs)
Form factor
Base Station
Manufactured
Between 1985 and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
CAT-interface
Clock-Timer
Headphone jack (and MPX, AF and RF Mute jacks)
Priority
Recorder Activation
Squelch
TV tuner front end
Tone control
Tuning Meter
Telescopic whip antenna included
Accessories
-
RigReference ID
4223
MPN
YAESU-FRG-009600

Manuals, diagrams and brochures

Yaesu FRG-9600 Operating Manual PDF - 5.77 MB, submitted by RigReference
Yaesu FRG-9600 Service Manual PDF - 7.63 MB, submitted by Gerd

Upload relevant documents

Reviews & stories

Rating Title Submitted
Great Receiver 11 years ago by aharink
Its ok to have at the right price. 12 years ago by Radio10

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FRG-9600. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FRG-9600 is around:

  • EUR 74.00 ~ EUR 18.00
  • USD 21.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2021 EUR 160.00 Used / Good SWL_de
2015 EUR 150.00 Used / Mint ON8ODK
2010 EUR 115.00 Used / Good aharink
2008 USD 200.00 Used / Good Radio10
