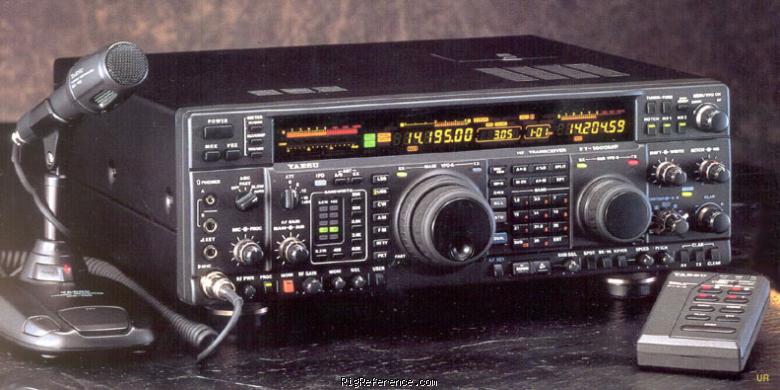

The Yaesu FT-1000MP introduced Enhanced Digital Signal Processing (EDSP) providing an impressive array of noise-reduction and interference rejection filters never before available in the communications industry. Mindful of the critical need to preserve signal-to-noise ratio and IF skirt selectivity throughout the receiver, Yaesu engineers have retained the wide variety of IF filters and high intercept front-end that made the FT-1000D a best seller. Using this RF/IF design as a foundation and the FT-1000MP's EDSP system and Collins Mechanical Filter, the result is a uniquely clean sounding transmitter, with outstanding receiver performance. The Quad conversion receiver covers 100 kHz to 30 MHz. RF output is adjustable to 100 watts [25W AM] in SSB/CW/AM/FM/AFSK modes. The supply voltage is 90~129/180~258 V AC or 13.5 V DC 19 Amps.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- ?
Receiver
- RX-range
- 100 kHz - 30 MHz
- Modulations
- AM FM CW USB LSB AFSK RTTY
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Quad conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW USB LSB AFSK RTTY
- RF-output
- FM/SSB/CW: 100 W, AM: 25 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC or mains
- Current drain RX
- Max 2.8
- TX
- Max 19 A
Physical
- Dimensions (w×h×d)
- 410 × 135 × 347 mm (16.14 × 5.31 × 13.66 in)
- Weight
- 15.00 kg (33.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1996 and 200x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin VFO
- Accessories
- -
- RigReference ID
- 4227
- MPN
- YAESU-FT-001000MP
Manuals, diagrams and brochures
- Yaesu FT-1000mp Technical Supplement PDF - Unknown size, submitted by RigReference
