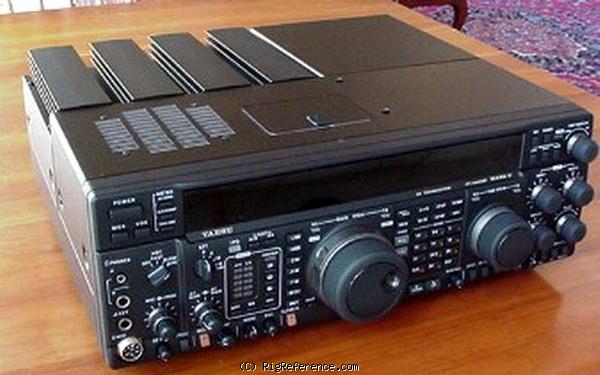

The Yaesu FT-1000MP Mk V is a 10-160 m + WARC transceiver supporting FM/SSB/CW and AM modulations. Maximum RF-output is 200 W PEP for FM/SSB/CW and 50 W PEP for AM. The radio features Twin RX and DSP. It operates on 13.8V DC and weighs 14 kg. Dimensions are 135 × 410 × 347 mm.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- RF-output
- FM/SSB/CW: 200 W, AM: 50 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 410 × 135 × 347 mm (16.14 × 5.31 × 13.66 in)
- Weight
- 14.00 kg (30.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2000 and 2005
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX. DSP
- Accessories
- -
- RigReference ID
- 4228
- MPN
- YAESU-FT-001000MP-MK-V
Manuals, diagrams and brochures
- Yaesu FT-1000mp Technical Supplement PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| Great rig | 14 years ago by ft1000 | |
| Yaesu FT-1000MP Mark V - HF Transceiver | 15 years ago by ku4gw |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-1000MP Mk V. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-1000MP Mk V in Good condition is around:
- USD 1,071 ~ USD 1,320
These estimates are based on the following prices:
