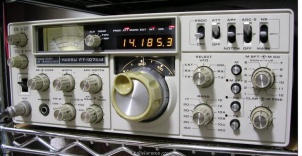

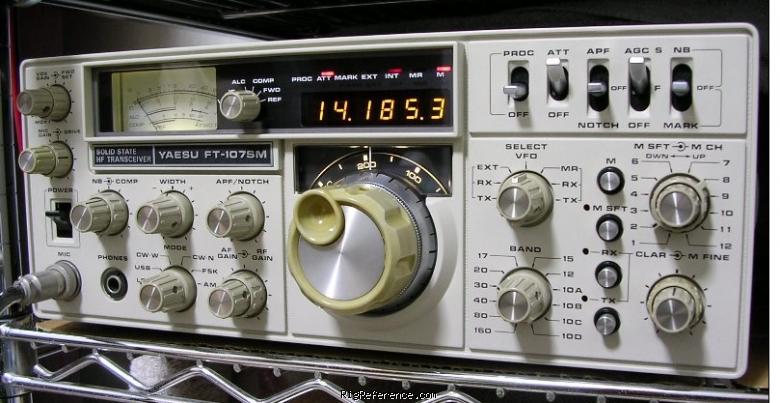

The Yaesu FT-107M is a solid-state HF transceiver covering 160 to 10 meters in SSB, CW, AM and FSK modes. There is also WWV/JJY receive at 5 MHz. Power input is 240 watts on SSB/CW and 80 watts on AM/FSK. It features a digital display and an analog subdial. The supplied SSB filter is 2.4 kHz. The FT-107M requires 13.8 V DC at 20 amps. This radio does not have general coverage receive.
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-160 m (no general coverage)
- Modulations
- AM CW USB LSB FSK
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- 2.4 kHz
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m
- Modulations
- AM CW USB LSB FSK
- RF-output
- SSB/CW: 240 W, AM/FSK: 80 W (INPUT)
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC or mains
- Current drain RX
- 1.5 A max
- TX
- 20 A max
Physical
- Dimensions (w×h×d)
- 334 × 129 × 400 mm (13.15 × 5.08 × 15.75 in)
- Weight
- 12.50 kg (27.6 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1980 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- VOX
Solid state
Peak/Notch filter
Noise blanker
Variable IF bandwidth
Speech processor - Accessories
- -
- RigReference ID
- 4239
- MPN
- YAESU-FT-000107
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-107. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FT-107 is around:
- EUR 64.00
- USD 32.00
These estimates are based on the following prices:
