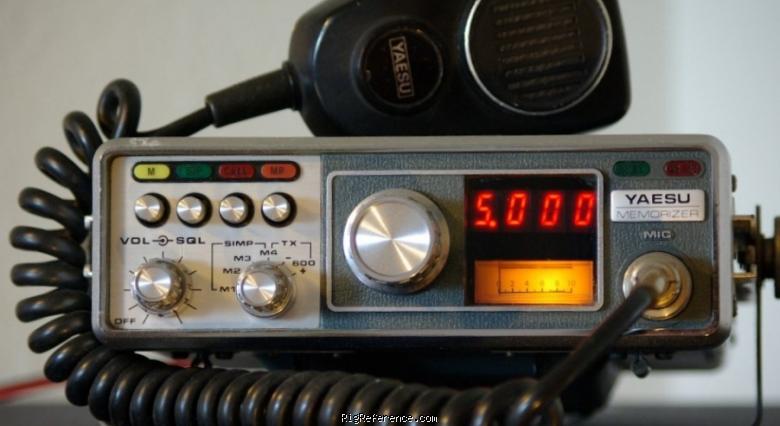

The Yaesu FT-227R Memorizer is a 2 meter mobile FM transceiver providing 10 watts (or 1 watt on low power). Frequency coverage is 144-148 MHz (in 800 5kHz steps). 600 kHz +/- repeater offset is supported. A special memory circuit allows you to memorize any single channel.

General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
5 kHz
Memories
1 channels in 1 bank(s)

Receiver

RX-range
144-148 MHz
Modulations
FM
Sensitivity
0.3 µV (20 dB quieting)
Selectivity
+/-6 kHz (-6 dB), +/-12 kHz (-60 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 KHz
Image rejection
?
Audio output
Internal speaker

Transmitter

TX-range
144-148 MHz
Modulations
FM
RF-output
1 / 10 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC +/-10%
Current drain RX
500 mA
TX
1-2.5 A max

Physical

Dimensions (w×h×d)
180 × 60 × 220 mm (7.09 × 2.36 × 8.66 in)
Weight
2.70 kg (6.0 lbs)
Form factor
Mobile
Manufactured
Between 1977 and 1979 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Digital display
Die cast front panel
Accessories
-
RigReference ID
4262
MPN
YAESU-FT-000227R-MEMORIZER

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Old, but gold. 4 years ago by jnmphoto

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-227R Memorizer. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-227R Memorizer is around:

  • EUR 19.00
  • USD 2.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2016 EUR 20.00 Used / Okay ON8ODK
2002 USD 30.00 Used / Good ab2rc
