Similar to the Yaesu FT-73R, which operates on 70 cm.
Frequency range can be extended to 140-164 MHz by removing a solder blob.

General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
?
Memories
10 channels in 1 bank(s)

Receiver

RX-range
144-146/148 MHz
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
144-146/148 MHz
Modulations
FM
RF-output
2 / 5 W

Connections

Antenna
BNC
Impedance
50 Ω
Other
-

Electrical

Power requirements
Max 12 V DC, NiCad battery
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
55 × 139 × 49 mm (2.17 × 5.47 × 1.93 in)
Weight
430 gr (15.2 oz)
Form factor
Handheld
Manufactured
Between 1986 and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
High Impact case
Scan
LCD
Priority

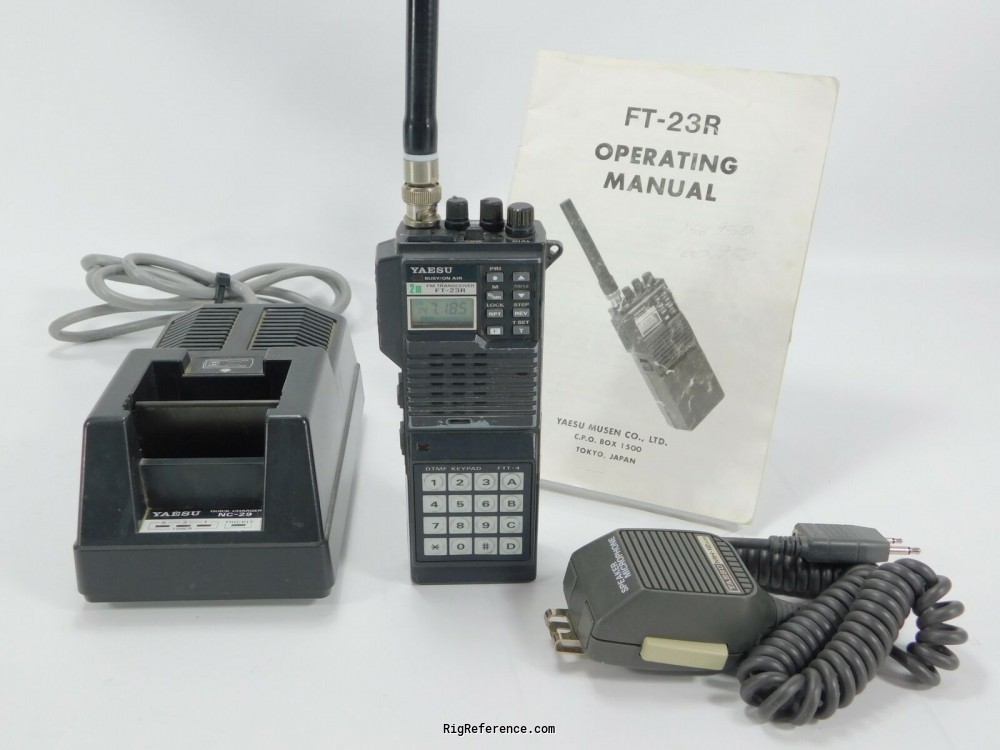

Optional FTT-4 DTMF Pad (shown)
Accessories
-
RigReference ID
4267
MPN
YAESU-FT-000023R

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-23R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-23R is around:

  • USD 3.00 ~ USD 4.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
1998 USD 100.00 Used / Good N8WLF
1987 USD 190.00 New / Mint N8WLF
