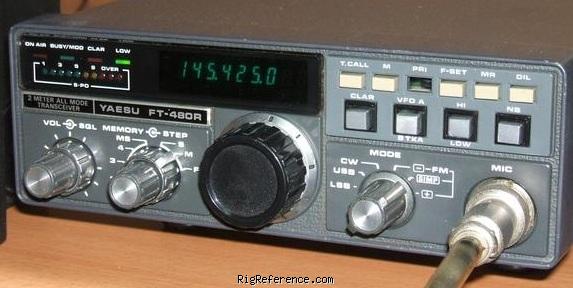

The Yaesu FT-480R is a mobile VHF transceiver. It covers 144-147 MHz (Europe) or 144-149 MHz (USA) for both receive and transmit. The receiver system is a double conversion superheterodyne with IF frequencies of 1st: 10.81 MHz and 2nd: 455 KHz. Image rejection is better than 60 dB. RF output is SSB: 30 W (PEP input), FM/CW, High: 30 W, Low: ? W (DC input). The transceiver has 1 memory bank with 4 channels. It requires 13.8V DC and draws 0.5 A in receive and 3 A in transmit. Dimensions are 60 × 180 × 240 mm. It weighs 2.9 kg. Features include NB and RIT.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 4 channels in 1 bank(s)
Receiver
- RX-range
- 144-147 MHz (Europe)
144-149 MHz (USA) - Modulations
- FM CW SSB
- Sensitivity
- SSB/CW: 0.5 µV for 20 dB S/N
FM: 0.35 µV for 20 dB QS - Selectivity
- SSB/CW: 2.4 kHz @ 6 dB down, 4.1 kHz @ 60 dB down
FM: 14 kHz @ 6 dB down, 25 kHz @ 60 dB down - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.81 MHz
2nd: 455 KHz - Image rejection
- Better than 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 144-147 MHz (Europe)
144-149 MHz (USA) - Modulations
- FM CW SSB
- RF-output
- SSB: 30 W (PEP input), FM/CW, High: 30 W, Low: ? W (DC input)
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 0.5 A
- TX
- 3 A
Physical
- Dimensions (w×h×d)
- 180 × 60 × 240 mm (7.09 × 2.36 × 9.45 in)
- Weight
- 2.90 kg (6.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1980 and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- NB, RIT
- Accessories
- -
- RigReference ID
- 4301
- MPN
- YAESU-FT-000480R
Manuals, diagrams and brochures
- FT-480R Instruction AND Service Manual PDF - 6.98 MB, submitted by Vaclav Fajmon
- Yaesu FT-480R Instruction Manual PDF - 4.55 MB, submitted by Vaclav Fajmon
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-480R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-480R in Good condition is around:
- EUR 50 ~ EUR 173
