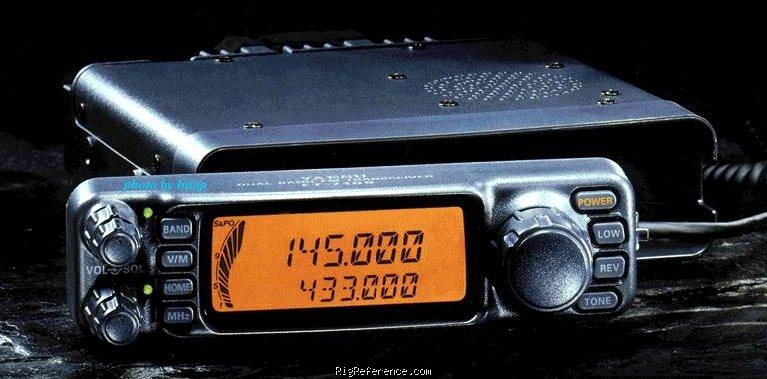

Yaesu FT-7100M

Mobile VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

European model has N-type connector. Cellular blocked in the US.

Frequency range

RX-range
108-180 / 320-480 / 810-1000 MHz *
TX-range
144-146 / 430-440 MHz (Europe)
144-148 / 430-450MHz (USA)
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   FM
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM
RF-Output
High: 50/35 W, Mid1: 20/20 W, Mid2: 10/10 W, Low: 5/5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
Max 0.5 A
TX
Max 11.5 A

Physical

Dimensions (w×h×d)
140 × 38 × 166 mm (5.51 × 1.50 × 6.54 in)
Weight
1,000 gr (2.2 lbs)
Form factor
Mobile
Manufactured
Between 2001 and 200x in Japan
MPN
YAESU-FT-007100M

Other features

Memories
262 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Detachable head. CTCSS & DCS ARTS. 9K6 packet ready. Twin RX.
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
