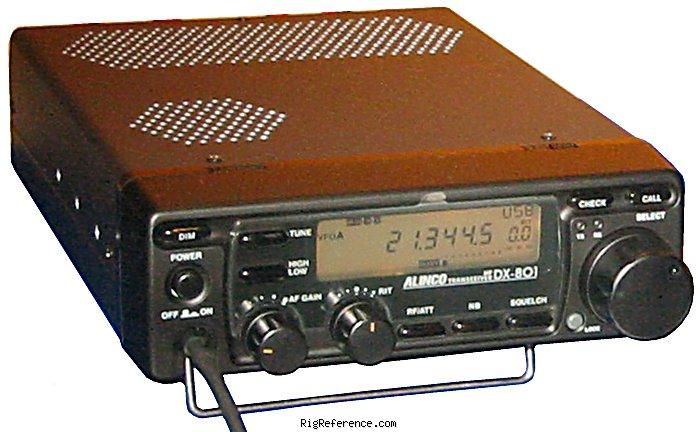

General characteristics

HAM bands
160m  80m  40m  20m  15m  10m
Frequency stability
± 2.0 ppm
Tuning steps
?
Memories
100 channels in 1 bank(s)

Receiver

RX-range
0.5-30 MHz
Modulations
AM   FM   SSB   GMSK
Sensitivity
AM (10 dB S/N)
10 μV (0.5 - 1.8 MHz)
2 μV (1.8 - 30 MHz)
FM (12 dB SINAD)
0.5 μV (28 - 30 MHz)
SSB/CW (10 dB S/N)
1 μV (0.5 - 1.8 MHz)
0.25 μV (1.8 - 30 MHz)
Selectivity
AM/FM: 9 kHz (-6 dB), 20 kHz (-50 dB)
SSB/CW: 2.4 kHz (-6 dB), 4.5 kHz (-60 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 71.75 MHz
2nd: 455 kHz
Image rejection
> 70 dB
Audio output
2 W (8 ohm, 10%), 4 W (4 ohm, 10%)

Transmitter

TX-range
160-10 m
Modulations
AM   FM   SSB   GMSK
RF-output
SSB/CW: 10/100 W, AM: 4/40 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC ±15%
Current drain RX
1.2 A
TX
20 A

Physical

Dimensions (w×h×d)
178 × 58 × 228 mm (7.01 × 2.28 × 8.98 in)
Weight
2.70 kg (6.0 lbs)
Form factor
Mobile
Manufactured
Between 2004 and 20xx

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4434
MPN
ALINCO-DX-000801

Manuals, diagrams and brochures

Alinco DX-801 Instruction manual PDF - Unknown size, submitted by RigReference
