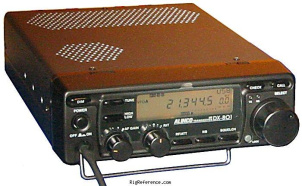

The Alinco DX-801 is a mobile transceiver. It covers 0.5-30 MHz for receive and 160-10 m for transmit. Frequency stability is ± 2.0 ppm. RF output is SSB/CW: 10/100 W, AM: 4/40 W. Audio output is 2 W (8 ohm, 10%) or 4 W (4 ohm, 10%). It has 1 memory bank with 100 channels. Power requirements are 13.8V DC ±15%. Dimensions are 58 × 178 × 228 mm. The transceiver weighs 2.7 kg. Current drain is 1.2 A (receive) and 20 A (transmit).
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- ± 2.0 ppm
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 0.5-30 MHz
- Modulations
- AM FM SSB GMSK
- Sensitivity
- AM (10 dB S/N)
10 μV (0.5 - 1.8 MHz)
2 μV (1.8 - 30 MHz)
FM (12 dB SINAD)
0.5 μV (28 - 30 MHz)
SSB/CW (10 dB S/N)
1 μV (0.5 - 1.8 MHz)
0.25 μV (1.8 - 30 MHz) - Selectivity
- AM/FM: 9 kHz (-6 dB), 20 kHz (-50 dB)
SSB/CW: 2.4 kHz (-6 dB), 4.5 kHz (-60 dB) - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 71.75 MHz
2nd: 455 kHz - Image rejection
- > 70 dB
- Audio output
- 2 W (8 ohm, 10%), 4 W (4 ohm, 10%)
Transmitter
- TX-range
- 160-10 m
- Modulations
- AM FM SSB GMSK
- RF-output
- SSB/CW: 10/100 W, AM: 4/40 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC ±15%
- Current drain RX
- 1.2 A
- TX
- 20 A
Physical
- Dimensions (w×h×d)
- 178 × 58 × 228 mm (7.01 × 2.28 × 8.98 in)
- Weight
- 2.70 kg (6.0 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2004 and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4434
- MPN
- ALINCO-DX-000801
