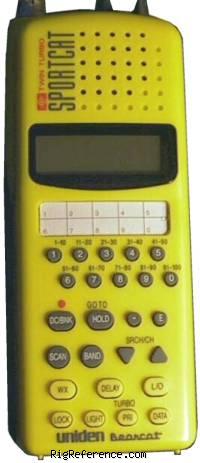

Uniden-Bearcat SC-150Y/B

Handheld HF/VHF/UHF Scanner / receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Uniden-Bearcat SC-150Y/B rigs and spare parts on eBay Find the Uniden-Bearcat SC-150Y/B on Amazon
We receive a small fee when you buy through these links, thank you!

The radio comes in black (SC150B) and yellow (SC150Y). It is VERY similar in appearance and performance to the BC220XLT/BC230XLT twins.
This is radio is sold in Europe as the Commtel COM214 and within Germany as the Albrecht AE105H.

Frequency range

RX-range
29-54 / 108-174 / 406-512 / 806-956 MHz
TX-range
-
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   FM
Sensitivity
?
Selectivity
?
Receiver system
Double conversion ('92 - '97) Triple conversion ('98 - '??)
IF-frequencies
?
Image rejection
?
Audio output
100mW max

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
BNC
Impedance
50 Ω

Electrical

Power requirements
4.8V DC
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
64 × 152 × 43 mm (2.52 × 5.98 × 1.69 in)
Weight
355 gr (12.5 oz)
Form factor
Handheld
Manufactured
Between 1992 and 199x
MPN
UNIDEN-BEARCAT-SC-000150Y/B

Other features

Memories
100 channels in 10 bank(s) @ 100 channels/second
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
