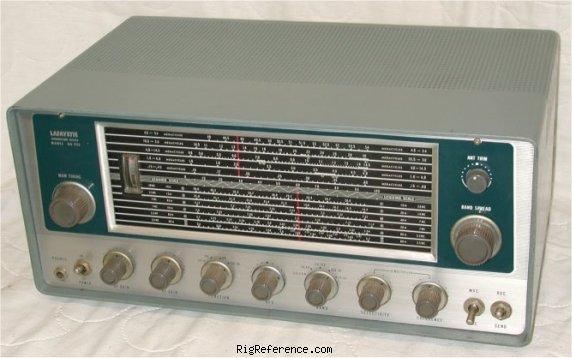

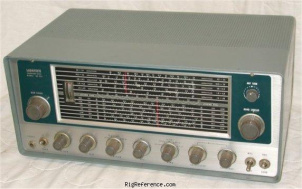

Lafayette HA-225

Desktop VHF Receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Lafayette HA-225 rigs and spare parts on eBay

Find the Lafayette HA-225 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

Ranges: .15-.4, 1.6-4.8, 4.8-14.5, 10.5-30 and 48-54 MHz. ¹ Note the gap of the MW band from .4-1.6 MHz and the gap from 30 to 48 MHz. Bandspread ranges: 3.5-3.7, 3.7-3.94, 7-7.17, 7.17-7.35, 14-14.4, 21-21.5 and 28-30 MHz. A separate SO-239 antenna jack is provided for 6 meters. Requires a speaker. Lafayette #99A2523WX. The calibrator crystal is optional.

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
Frequency stability: ?
Tuning steps: Continuous
Memories: 6 channels in 1 bank(s)

Receiver

RX-range: 150 kHz- 54 MHz
Modulations: AM CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Single conversion
IF-frequencies: ?
Image rejection: ?
Audio output: requires external speaker

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 432 × 191 × 254 mm (17.01 × 7.52 × 10.00 in)
Weight: 10.40 kg (22.9 lbs)
Form factor: Base Station
Manufactured: Between 19xx and 19xx in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: ¼" Head. Jack • S-Meter • Dial Lamp • Antenna Trimmer • RF Gain • ANL • Bandspread • Calibrator 100 kHz² • Mute • MVC/AVC • Standby • Speaker Terminals • BFO • Q-Multiplier • Line Out 500 ohms
Accessories: -
RigReference ID: 4479
MPN: LAFAYETTE-HA-000225
