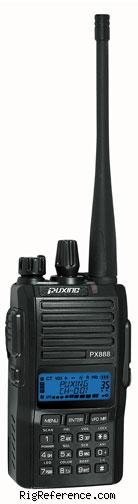

The PX-888 comes in 3 versions with the only difference being the frequency range. Receiver sensitivity is very good with 0.2µV or better. The PX-888 can be used for both amateur and commercial applications. The programmable channel shift allows for easy communication with repeaters and makes mariphone use possible.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ±2.5 ppm
- Tuning steps
- 5 / 10 / 6.25 / 12.5 and 25 kHz
- Memories
- 128 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 MHz (VHF Lo version)
245-246 MHz (VHF Hi version)
400-470 MHz (UHF version) - Modulations
- N-FM W-FM
- Sensitivity
- ＜0.2µV (12dB SINAD)
- Selectivity
- 25 or 12.5 kHz
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ≥60dB
- Audio output
- ?
Transmitter
- TX-range
- 136-174 MHz (VHF Lo version)
245-246 MHz (VHF Hi version)
400-470 MHz (UHF version) - Modulations
- N-FM W-FM
- RF-output
- Hi: 4 to 5W, Low: 0.5 to 1W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.2V DC or internal Li-ion battery
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 55 × 100 × 32 mm (2.17 × 3.94 × 1.26 in) not including antenna
- Weight
- 220 gr (7.8 oz) including battery
- Form factor
- Handheld
- Manufactured
- Between 200x and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Two lines alphanumeric dot matrix LCD
Double channels watch
CTCSS / DCS
DTMF/2 tone/MSK ANI
1750 Hz tone
10-digit keyboard
PC programmable
Keypad lock
Time-out Timer
Reverse frequency function (shift)
Scrambler
Simplex or Semi-duplex Operate Mode - Accessories
- -
- RigReference ID
- 4499
- MPN
- PUXING-PX-000888
