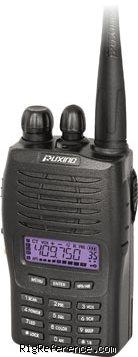

The Puxing PX-777 is a handheld VHF/UHF transceiver. It covers 67-72 MHz, 136-174 MHz, 240-250 MHz, 350-390 MHz, 400-470 MHz and 450-512 MHz with a frequency stability of ±2.5 ppm. Tuning steps are selectable between 5 / 10 / 6.25 / 12.5 and 25 kHz. The PX-777 has an image rejection of ≥60dB. RF output is 5W on VHF and 4W max on UHF. It features 1 memory bank with 128 channels, alpha tags, CTCSS/DCS, keypad lock, PC programmability, reverse frequency function (shift), time-out timer, and 3 selectable LCD colors. The PX-777 weighs 220 gr including the battery. Dimensions are 100 × 55 × 32 mm not including the antenna.
General characteristics
- HAM bands
- ?
- Frequency stability
- ±2.5 ppm
- Tuning steps
- 5 / 10 / 6.25 / 12.5 and 25 kHz
- Memories
- 128 channels in 1 bank(s)
Receiver
- RX-range
- 67-72 MHz (VHF Lo version)
136-174 MHz (VHF Mid version)
240-250 MHz (VHF Hi version)
350-390 MHz (UHF Lo version)
400-470 MHz (UHF Mid version)
450-512 MHz (UHF Hi version) - Modulations
- N-FM W-FM
- Sensitivity
- ＜0.2µV (12dB SINAD)
- Selectivity
- 25 or 12.5 kHz
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ≥60dB
- Audio output
- ?
Transmitter
- TX-range
- 67-72 MHz (VHF Lo version)
136-174 MHz (VHF Mid version)
240-250 MHz (VHF Hi version)
350-390 MHz (UHF Lo version)
400-470 MHz (UHF Mid version)
450-512 MHz (UHF Hi version) - Modulations
- N-FM W-FM
- RF-output
- VHF: 5W, UHF: 4W max
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.2V DC or internal Li-ion battery
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 55 × 100 × 32 mm (2.17 × 3.94 × 1.26 in) not including antenna
- Weight
- 220 gr (7.8 oz) including battery
- Form factor
- Handheld
- Manufactured
- Between 200x and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Alpha tags
CTCSS / DCS
Keypad lock
PC programmable
Reverse Frequency Function (Shift)
Time-out Timer
3 selectable LCD colors - Accessories
- -
- RigReference ID
- 4504
- MPN
- PUXING-PX-000777
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Puxing PX-777. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Puxing PX-777 in Good condition is around:
- EUR 55
- USD 60
These estimates are based on the following prices:
