The Yaesu FTM-350R dual band mobile transceiver operates on 2 meters and 70 centimeters. And that is with a full 50 watts of reliable power on both bands. And even QRP 220 MHz (1 watt) is also supported (USA version only). It has two separate receivers with dual speakers on the rear of the control head. The controls are easy to use. On the left receiver enjoy the AM, FM and stereo FM broadcast bands with extended receive: 0.5-1.7, 76-108, 108-250, 300-1000 MHz (less former cellular frequencies). The right receiver covers 108-250, 300-1000 MHz (less former cellular frequencies). Enjoy 500 memories with alpha tagging for the left band and 500 for the right band (total 1000) plus 9 DTMF memories. And the FTM-350R menu system is easy to use. There is also stereo line inputs available. This radio is compatible with various APRS® functions. The FTM-350R is ready to accept the optional FGPS-1 internal GPS receiver-antenna. The front panel is easily remoteable with the 10 foot included cable. A 20 foot remote cable is available optionally. There is a front panel built-in microphone activates PTT transmission. Supplied with: MH-48A6JA DTMF hand mic, Front panel suction type mounting bracket, DC power cable, 10 foot control panel cable, speaker cable, spare fuse and Owner's Manual.

Introduction price in 2009: USD 629.-

General characteristics

HAM bands
2m  1.25m  70cm
Frequency stability
±5 ppm
Tuning steps
5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 / 200 kHz
Memories
1000 channels in 2 bank(s)

Receiver

RX-range
0.5-1.8 (AM) / 76-108 (FM) / 108-250 / 300-1000 MHz (cellular block in some regions)
Modulations
AM   FM   N-FM   W-FM   W-FM Stereo
Sensitivity
0.8 µV (10 dB SN, 108-137 MHz, AM)
0.2 µV (12 dB SINAD, 137-150 MHz, FM)
0.25 µV (12 dB SINAD, 150-174 MHz, FM)
1 µV (12 dB SINAD, 174-222 MHz, W-FM)
0.8 µV (10 dB SN, 300-336 MHz, AM)
0.25 µV (12 dB SINAD, 336-420 MHz, FM)
0.2 µV (12 dB SINAD, 420-470 MHz, FM)
5 µV (12 dB SINAD, 470-800, W-FM)
0.4 µV (12 dB SINAD, 800-900 MHz, FM)
0.8 µV (12 dB SINAD, 800-999 MHz, FM)
5 µV (10 dB SN, 0.5-1.7 MHz, AM)
2 µV (12 dB SINAD, 76-108 MHz, W-FM)
Selectivity
N-FM/AM: 12 / 30 kHz (-6/-60 dB)
Filters
?
Receiver system
Single conversion (AM radio) Double conversion (FM/AM) Triple conversion (W-FM)
IF-frequencies
FM/AM radio
1st: 130 kHz (FM) / 50 kHz (AM)
FM/AM
1st: 47.25 (A) / 44.85 (B) MHz
2nd: 450 (A/B) MHz
W-FM
1st: 45.8 (A) / 44.0 (B) MHz
2nd: 10.7 MHz
3rd: 1 MHz (A) / 400 kHz (B)
Image rejection
?
Audio output
4 W @ 4 ohm for 10% THD

Transmitter

TX-range
2m / 1.25m / 70cm (1.25m USA only)
Modulations
FM   N-FM
RF-output
50 / 20 / 5 W (USA version: 1 W QRP mode)

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC (11.7~15.8V DC) negative ground
Current drain RX
0.5 A
TX
10 A

Physical

Dimensions (w×h×d)
157 × 66 × 183.5 mm (6.18 × 2.60 × 7.22 in) Chassis + front panel, without knobs
Weight
2.10 kg (4.6 lbs) Chassis + front panel
Form factor
Mobile
Manufactured
Between 2009 and 201x

Other features

Usage
Amateur / Ham radio operators
Features + options
Alpha tags
GPS

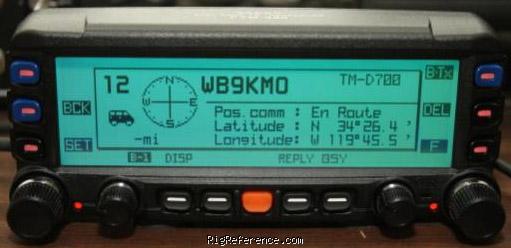

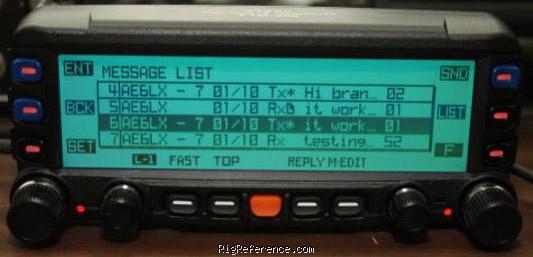

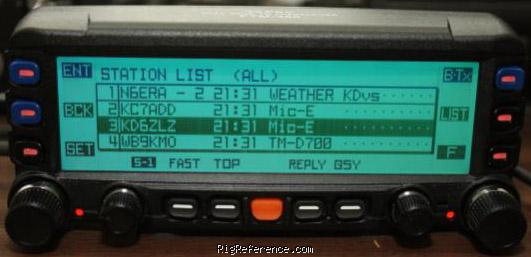

APRS
DTMF
Repeater shift (±600 kHz)
Twin RX
Packet modem (1200/9600 baud)
8 different background colours
Accessories
-
RigReference ID
4522
MPN
YAESU-FTM-000350

Manuals, diagrams and brochures

Yaesu FTM-350R Operation manual PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
Needs Refinement 9 years ago by KJ4VOV

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTM-350. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FTM-350 is around:

  • EUR 238.00
  • USD 340.00 ~ USD 227.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2016 EUR 250.00 Used / Mint ON8ODK
2011 USD 685.00 New / Mint KJ4VOV
2010 USD 569.95 New / Mint K5CPF
