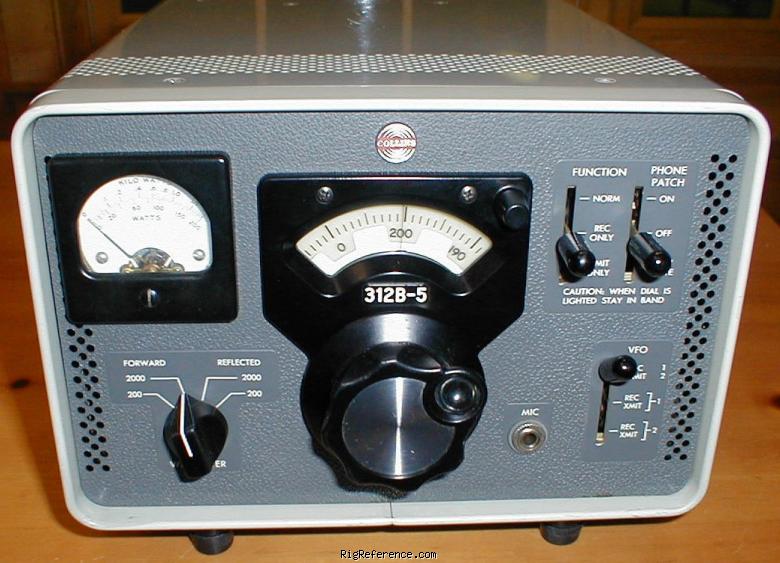

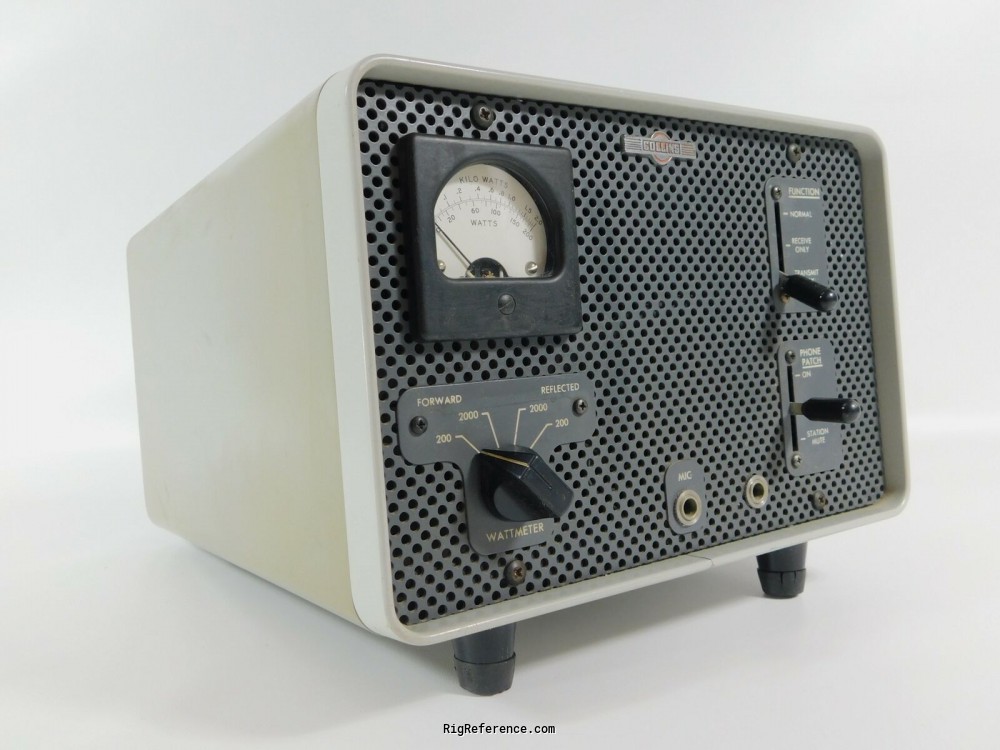

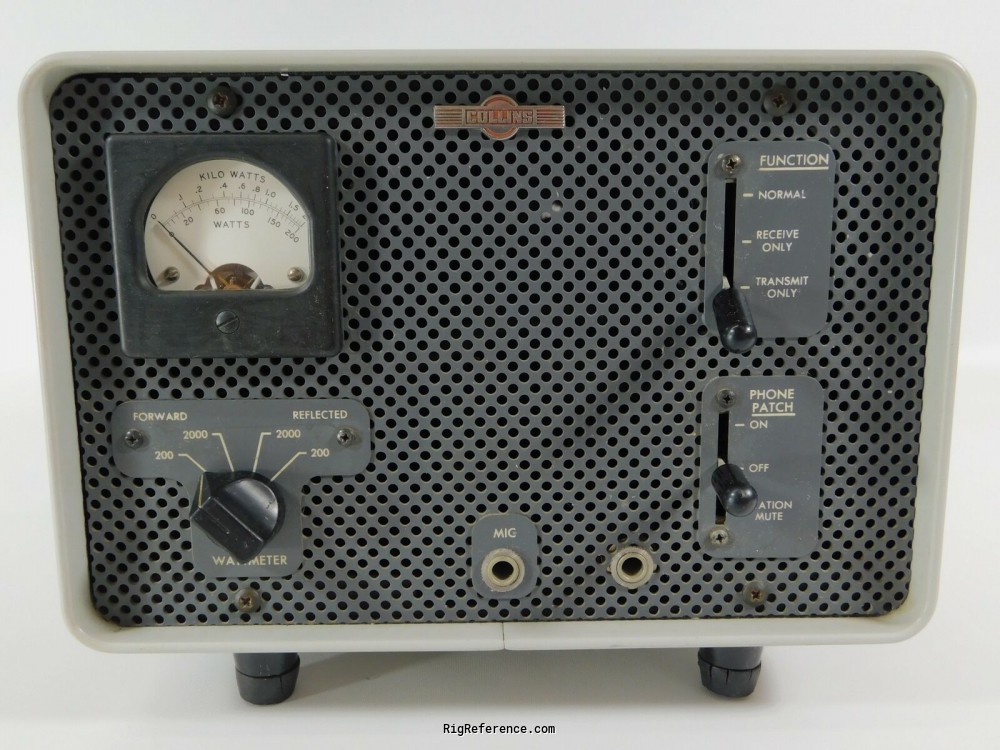

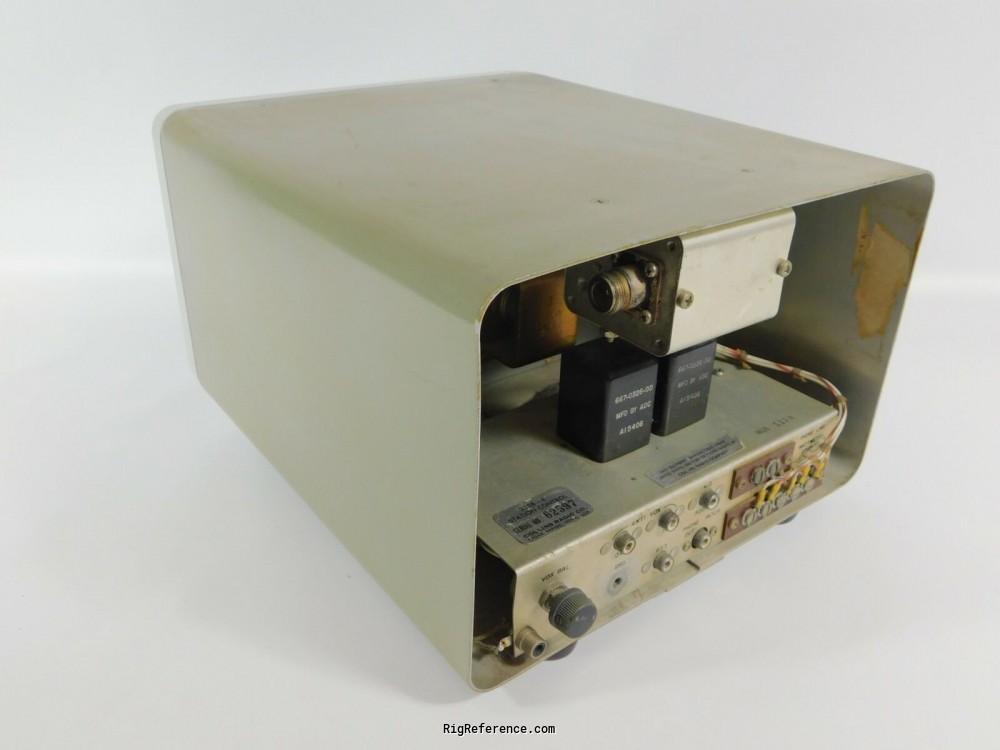

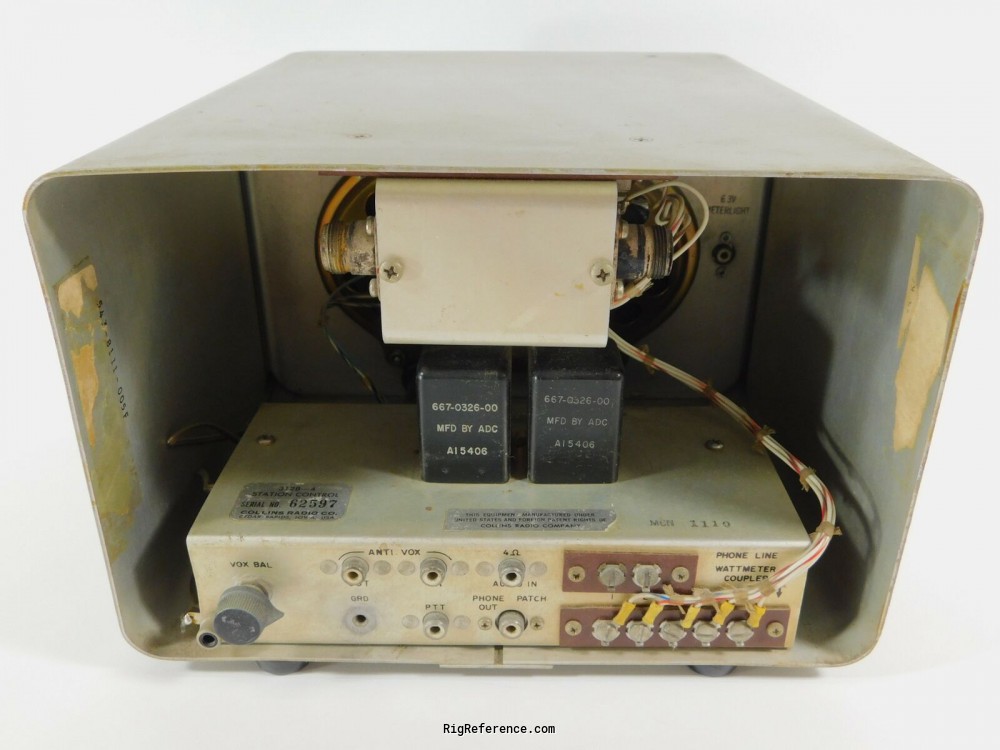

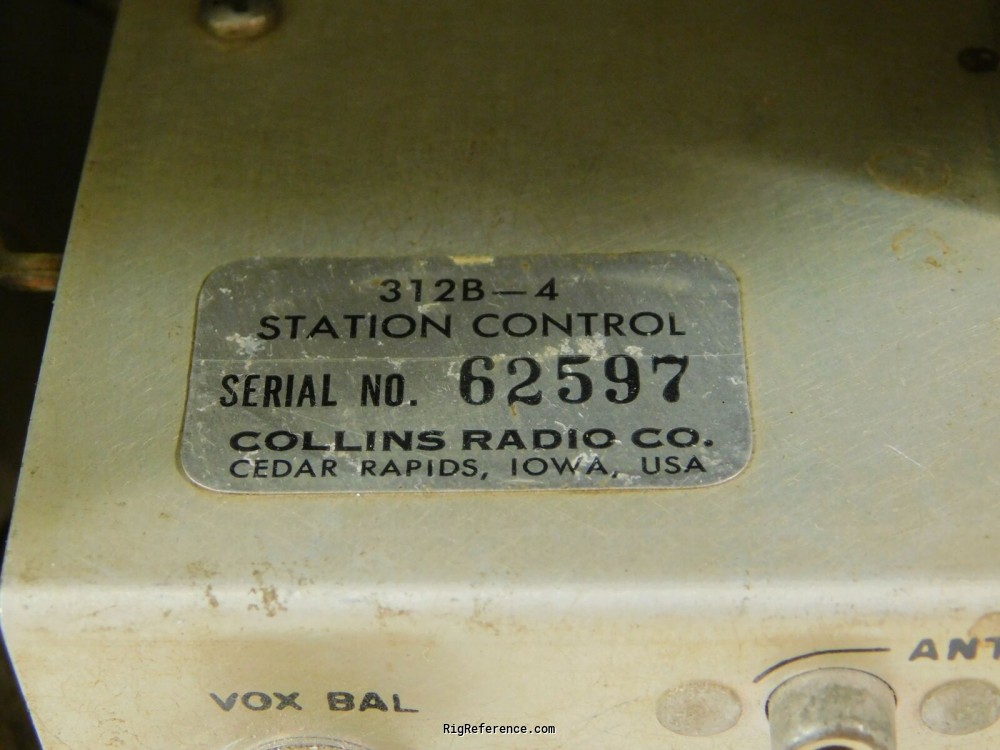

The 312B-4 and 312B-5 Station Controls contain a directional coupler and wattmeter, a speaker, a phone patch, and appropriate switching circuitry. The same types of directional coupler and wattmeter, phone patch, and speaker are used in both the 312B-4 and 312B-5. In addition, the 312B-5 contains an auxiliary variable frequency oscillator (VFO) to provide separate transmit and receive frequencies when used with the KWM-2 or KWM-2A Transceivers.
The wattmeter indicates power levels within the ranges of 0-200 or 0-2000 watts, forward or reflected. It is accurate over the range of 2 to 30 MHz, but should not be used on higher frequencies. The phone patch includes circuitry which allows VOX phone patch operation. It can also be switched manually if desired. The VFO in the 312B-5 is the same as that used in KWM-2/2A and S/Line equipment. Switching circuits are provided to allow operation of KWM-2/2A Transceivers on different transmit and receive frequencies or transmit-receive operation on the same frequency using either VFO.
General characteristics
- HAM bands
- ?
- Frequency stability
- Less than 100 Hz after 30-minute warmup
- Tuning steps
- N/A
- Memories
- None
Frequency range
- Range
- 2-30MHz
Connections
- Antenna
- Clamps / screws + RCA (Tulip)
- Impedance
- 52 (unbalanced)Ω
- Other
- -
Electrical
- Power requirements
- None
- Current drain RX
- -
- TX
- -
Physical
- Dimensions (w×h×d)
- 275 × 190 × 300 mm (10.83 × 7.48 × 11.81 in) including feet
- Weight
- 3.85 kg (8.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4531
- MPN
- COLLINS-000312B-4/5
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Collins 312B-4/5. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
