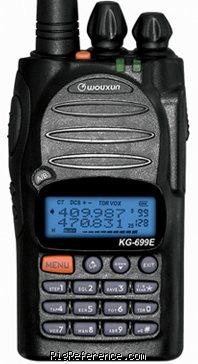

The Wouxun KG-699E is a dual band hand-held featuring a full numeric keypad which allows direct frequency entry. Many versions are available for different frequency bands. The version with 1750Hz tone and Priority Scan also comes with 200 memories instead of 128.

General characteristics

HAM bands
?
Frequency stability
±2ppm
Tuning steps
5/6.25/10/12.5/25 kHz
Memories
128 channels in 1 bank(s)

Receiver

RX-range
66-88 or 136-174 or 245-246 or 300-350 or 350-390 or 400-470 or 450-520 MHz
Modulations
FM   N-FM
Sensitivity
0.25µV (12dB SINAD)
Selectivity
12.5/25kHz
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
500mW @ <3% THD

Transmitter

TX-range
66-88 or 136-174 or 245-246 or 300-350 or 350-390 or 400-470 or 450-520 MHz
Modulations
FM   N-FM
RF-output
VHF: 1W/5W, UHF: 1W/4W

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
7.4V DC Li-Ion, 1300/1700mAh
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
62 × 105 × 39 mm (2.44 × 4.13 × 1.54 in) without antenna
Weight
255 gr (9.0 oz) with antenna and battery
Form factor
Handheld
Manufactured
Between 200x and 20xx in China

Other features

Usage
Amateur / Ham radio operators
Features + options
Dual band
Alpha tags
VOX
Reverse frequency (shift)
DTMF
CTCSS / DCS
ANI-ID
PC programmable
3 color LCD backlight
Digital FM radio

Optional:
1750Hz, Priority scan
Accessories
-
RigReference ID
4537
MPN
WOUXUN-KG-000699E
