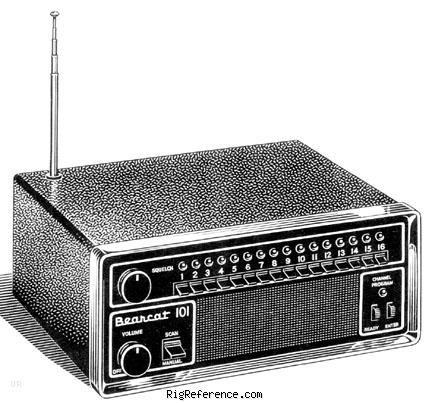

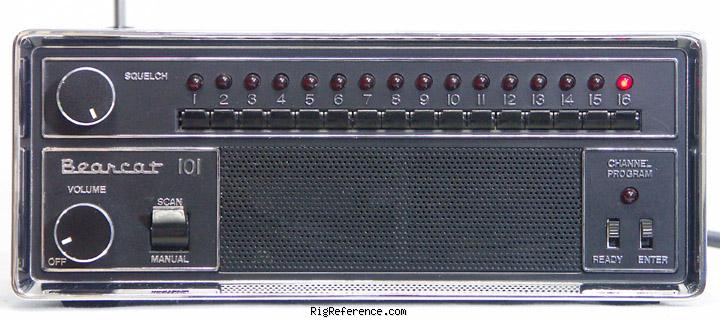

Uniden-Bearcat BC-101

Handheld VHF/UHF Scanner / receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

The historic Bearcat 101 was the first crystal-less scanner. It receives VHF Low, VHF High and UHF. 16 frequencies may be set by the user. Programming is via the front panel. No manual, but includes some programming directions off the Web. Channels 12 and 13 not scanning, but may just not be programmed. The rear panel has a Motorola antenna jack and speaker jack. We did not try to program it, but it is working and receiving the local NOAA weather channel. Includes removable whip antenna.

Frequency range

RX-range
30-50 / 146-148 / 148-174 / 450-470 / 470-512 MHz
TX-range
-
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
FM
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
100mW

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
NMO + Built-in telescopic
Impedance
50 Ω

Electrical

Power requirements
Mains
Current drain RX
30W
TX
-

Physical

Dimensions (w×h×d)
230 × 93 × 184 mm (9.06 × 3.66 × 7.24 in)
Weight
2.80 kg (6.2 lbs)
Form factor
Handheld
Manufactured
Between 19xx and 19xx
MPN
UNIDEN-BEARCAT-BC-000101

Other features

Memories
16 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.
