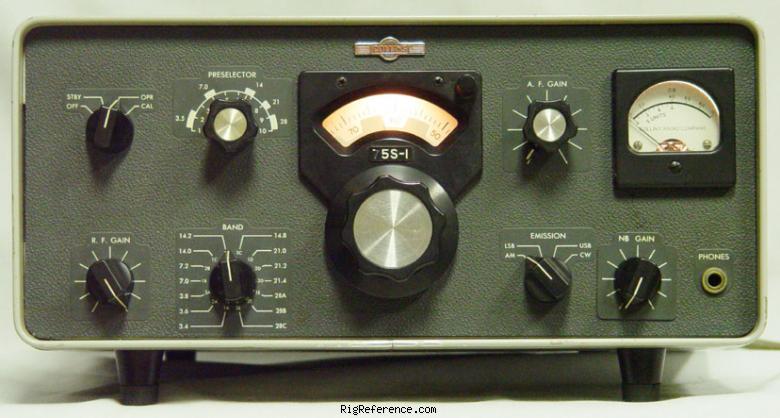

The Collins 75S-1 is a high quality amateur band receiver featuring AM, CW, LSB and USB modes. Frequency ranges: 3.4-3.6, 3.6-3.8, 3.8-4, 7-7.2, 7.2-7.4, 14-14.2, 14.2-14.4, 14.8-15, 21-21.2, 21.2-21.4, 21.4-21.6 and 28.5-28.7 MHz plus 2 additional 200 kHz positions for the 10 meter band. Features include: S-Meter, 100 kHz Crystal Calibrator 100 kHz, BFO and Fiduciary Adjust. It has jacks for: Anti-Vox Jack, Sidetone Jack, Speaker and Mute.
The 75S-1 matches the 32S-1 transmitter. Requires a speaker.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-80 m
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Requires external speaker
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 374 × 169 × 292 mm (14.72 × 6.65 × 11.50 in)
- Weight
- 9.00 kg (19.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4577
- MPN
- COLLINS-000075S-1
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Collins 75S-1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Collins 75S-1 is around:
- USD 68.00 ~ USD 182.00
