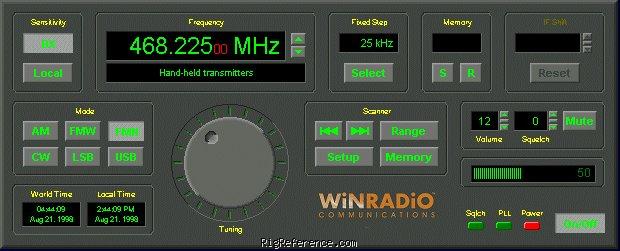

WiNRADiO WR-1550e

General characteristics

HAM bands

?

Frequency stability

10 ppm (0 to 60° C)

Tuning steps

1 Hz / 0.01 kHz

Memories

?

Receiver

RX-range

0.15-1500 MHz

Modulations

AM   N-FM   W-FM   USB   LSB

Sensitivity

AM/SSB/CW: 10dB S/N
FM-N/FM-W: 12dB SINAD

Mode 0.15-1.5 MHz 1.5-30 MHz 30-1000 MHz 1-1.5 GHz
AM 25µV 1µV 1µV 1.9µV
SSB 0.9µV 0.3µV 0.3µV 0.4µV
FM N 0.4µV 0.4µV 0.4µV 0.4µV
FM W - - 1.0µV 1.0µV

Selectivity

SSB/CW 2.5 kHz @ 6dB
AM 6 kHz @ 6dB
FM-N 15 kHz @ 6dB
FM-W 230 kHz @ 6dB

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

65dB

Audio output

0.2W (8 ohm load)

Connections

Antenna

BNC

Impedance

50 Ω

Other

-

Electrical

Power requirements

?

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Headless

Manufactured

Between 199x and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

RS-232 computer interface

Accessories

-

RigReference ID

4672

MPN

WINRADIO-WR-001550E
