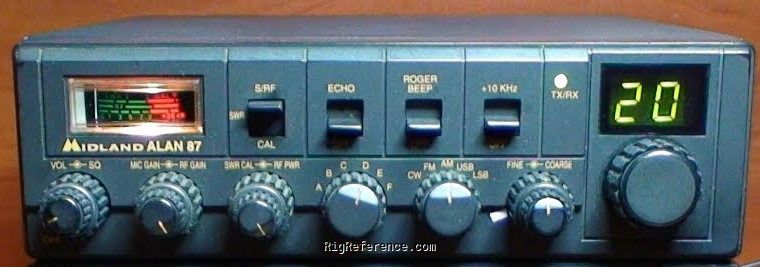

Roger beep. +10 KHz switch. Echo chamber option

General characteristics

HAM bands
11m (CB)
Frequency stability
?
Tuning steps
?

Receiver

RX-range
25.615-28.315 MHz
Modulations
AM   FM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
25.615-28.315 MHz
Modulations
AM   FM   CW   SSB
RF-Output
25 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
?
Current drain RX
?
TX
?

Physical

Manufactured
Between 199x and 199x
Dimensions (w×h×d)
200 × 50 × 235 mm (7.87 × 1.97 × 9.25 in)
Weight
2.25 kg (5.0 lbs)
Form factor
Mobile

Other features

Memories
271 channels in 1 bank(s)
Usage
Citizen Band (27Mc)
Features + options
?
Accessories
?
MPN
ALAN-000087

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Alan 87 user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alan 87. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
