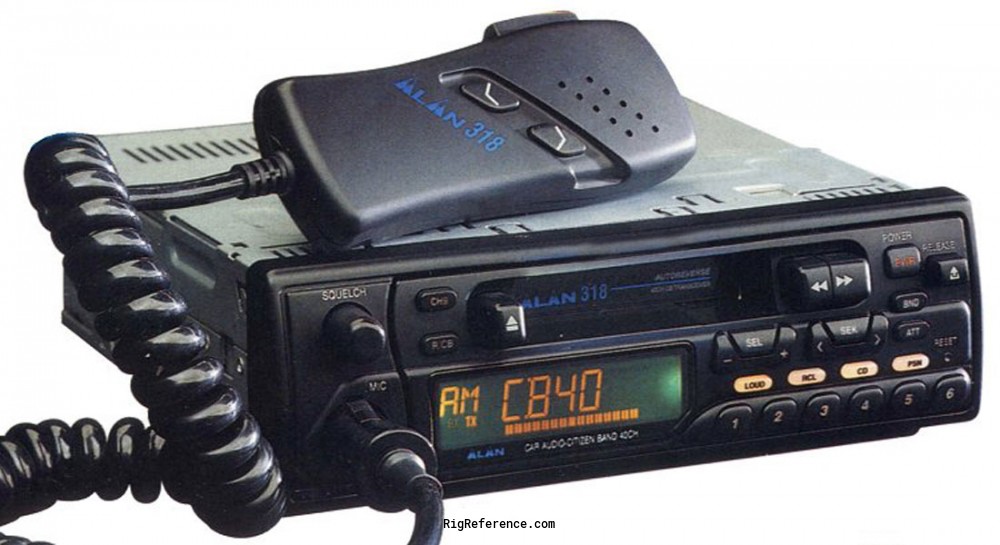

Built-in tape deck.

General characteristics

HAM bands
11m (CB)
Frequency stability
?
Tuning steps
?

Receiver

RX-range
522 - 1620 kHz / 26.965-27.405 / 87.5-108 MHz
Modulations
AM   FM   W-FM Stereo
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
26.965-27.405 MHz
Modulations
FM
RF-Output
4 W

Connections

Antenna
SO-239 + KOK1
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
?
TX
3 A max

Physical

Manufactured
Between 199x and 199x
Dimensions (w×h×d)
178 × 50 × 160 mm (7.01 × 1.97 × 6.30 in)
Weight
2.00 kg (4.4 lbs)
Form factor
Mobile

Other features

Memories
120 channels in 1 bank(s)
Usage
Citizen Band (27Mc)
Features + options
?
Accessories
?
MPN
ALAN-000318
