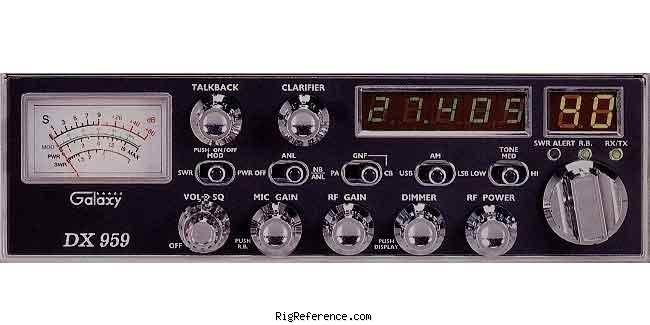

Galaxy DX-959

General characteristics

HAM bands

11m (CB)

Frequency stability

±0.001%

Tuning steps

Channelized

Memories

40 channels in 1 bank(s)

Receiver

RX-range

26.965-27.405 MHz

Modulations

AM   USB   LSB   DSB

Sensitivity

@ 10dB S/N < 0.5 µV (AM)
@ 10dB S/N < 0.25 µV (SSB)

Selectivity

- 60 dB

Filters

?

Receiver system

PLL - based receiver.

IF-frequencies

1st IF 10.695 MHz
2nd IF 455 kHz

Image rejection

- 65 dB

Audio output

2 Watts into 8 Ohms @ 10% THD.

Transmitter

TX-range

26.965-27.405 MHz

Modulations

AM   USB   LSB   DSB

RF-output

4W (AM)
12W PEP (SSB)

Connections

Antenna

SO-239

Impedance

50Ω

Other

External Speaker - 3.5 mm Mono.
External PA Speaker - 3.5 mm Mono.

Electrical

Power requirements

13.8 V DC

Current drain RX

< 0.5 A

TX

< 3.5 A

Physical

Dimensions (w×h×d)

200 × 61 × 234 mm (7.87 × 2.40 × 9.21 in)

Weight

?

Form factor

Mobile

Manufactured

Between 1997 and 2017 in Malaysia

Other features

Usage

Citizen Band (27Mc)

Features + options

Talk-back control.
Frequency display.
SWR Meter.
PA.
NB / ANL.
Internal AGC.
Roger Beep.

Accessories

-

RigReference ID

4760

MPN

GALAXY-DX-000959

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Galaxy DX-959. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Galaxy DX-959 in Good condition is around:

• USD 211
