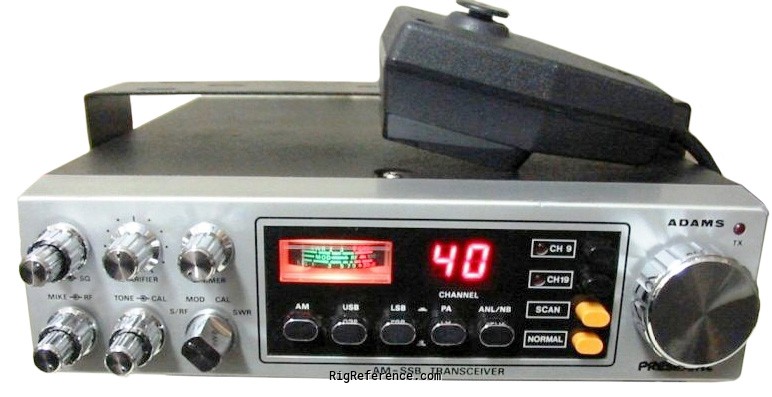

Model / FCC no. 1009001

General characteristics

HAM bands
11m (CB)
Frequency stability
?
Tuning steps
?

Receiver

RX-range
26.965-27.405 MHz
Modulations
AM   USB   LSB
Sensitivity
AM: 0.75 µV (10 dB (S+N)/N)
SSB: 0.25 µV (10 dB (S+N)/N)
Selectivity
4.2 kHz (-6 dB), 7 kHz (-60 dB)
Filters
?
Receiver system
Single conversion superheterodyne
IF-frequencies
7.8 MHz
Image rejection
≥ 70 dB
Audio output
3 W at 10% distortion / 8 ohms

Transmitter

TX-range
26.965-27.405 MHz
Modulations
AM   USB   LSB
RF-Output
AM: 4 W, SSB: 12 W (PEP)

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
11.7-15.9 V DC
Current drain RX
2 A
TX
3 A max

Physical

Manufactured
Between 1978 and 1979 in Taiwan
Dimensions (w×h×d)
232 × 65 × 275 mm (9.13 × 2.56 × 10.83 in)
Weight
3.55 kg (7.8 lbs)
Form factor
Mobile

Other features

Memories
40 channels in 1 bank(s)
Usage
Citizen Band (27Mc)
Features + options
PA
ANL
Noise Blanker
RF & Mic gain
SWR-meter
Tone
Dimmer
Scanning
Accessories
?
MPN
PRESIDENT-ADAMS

Manuals, diagrams and brochures

President Adams Owner's Manual submitted by RigReference
President Adams Schematic Diagram submitted by RigReference
