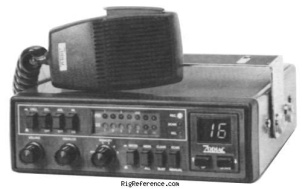

Zodiac Searcher 40

Mobile Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Zodiac Searcher 40 is a mobile transceiver. It covers 26.965-27.255 MHz for both receive and transmit with channelized tuning steps. The RF output is 3.5 W. Audio output is through an internal speaker. It features 5 scanning memories, ANL, PA, and SelCall. The radio has 1 memory bank with 23 channels. Power requirements are 13.8 V DC. Current drain is 0.2 A in receive and 1.0 A in transmit. Dimensions are 56 × 179 × 211 mm.

General characteristics

HAM bands: 11m (CB)
Frequency stability: ?
Tuning steps: Channelized
Memories: 23 channels in 1 bank(s)

Receiver

RX-range: 26.965-27.255 MHz
Modulations: AM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: Internal speaker

Transmitter

TX-range: 26.965-27.255 MHz
Modulations: AM
RF-output: 3.5 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC
Current drain RX: 0.2 A
TX: 1.0 A

Physical

Dimensions (w×h×d): 179 × 56 × 211 mm (7.05 × 2.20 × 8.31 in)
Weight: 1.85 kg (4.1 lbs)
Form factor: Mobile
Manufactured: Between 197x and 198x

Other features

Usage: Citizen Band (27Mc)
Features + options: 5 scanning memories
ANL
PA
SelCall
Accessories: -
RigReference ID: 5003
MPN: ZODIAC-SEARCHER-000040
