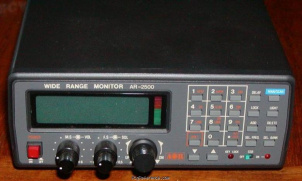

The AOR AR-2500 is a desktop base station scanner/receiver. It covers 5-550 MHz and 800-1300 MHz reception frequencies with tuning steps of 5, 12.5, or 25 kHz. The receiver has 62 memory banks and 1984 memory channels. Audio output is 500 mW into 8 ohms at 10% THD. It requires 11-16V DC power and weighs 650 gr. Dimensions are 55 × 150 × 180 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 / 12.5 / 25 kHz
- Memories
- 1984 channels in 62 bank(s) @ 36 channels/second
Receiver
- RX-range
- 5-550 / 800-1300 MHz
- Modulations
- AM FM W-FM CW USB LSB
- Sensitivity
- FM 0.45µV @ 12 dB SINAD
W-FM 1.0µV @ 12 dB SINAD
AM 1.0µV @ 10 dB S/N - Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 500 mW into 8 ohms @ 10% THD
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 150 × 55 × 180 mm (5.91 × 2.17 × 7.09 in)
- Weight
- 650 gr (1.4 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1985 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5012
- MPN
- AOR-AR-002500
Manuals, diagrams and brochures
- AOR AR2500 Wideband Receiver Manual PDF - 572.9 kB, submitted by home video
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-2500. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the AOR AR-2500 in Good condition is around:
- USD 159 ~ USD 180
These estimates are based on the following prices:
