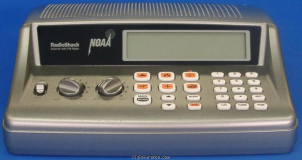

RadioShack / Realistic Pro-405 Desktop VHF/UHF Scanner / receiver

 (4.4/5)  Add a story   View all stories (1)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
29-54 / 87.3-174 / 380-512 MHz (with gaps)
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
FM
Sensitivity
29-54 MHz 0.5 µV
87.3-107.9 MHz ((S+N)/N 30 dB) 1.0 µV
108-136.99166 MHz 1.0 µV
137-174 MHz 0.5 µV
380-512 MHz 0.7 µV
(S+N)/N 20 dB unless noted
Selectivity
+/-8 kHz -6 dB
+/-17 kHz -50 dB
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 kHz
Image rejection
70 dB
Audio output
0.7 W @ 10% THD

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
9V DC
Current drain RX
8 W
TX
-

Physical

Dimensions (w×h×d)
210 × 60 × 175 mm (8.27 × 2.36 × 6.89 in)
Weight
700 gr (1.5 lbs)
Form factor
Base Station
Manufactured
Between 2008 and 20xx
MPN

Other features

Memories
200 channels in 20 bank(s) @ 80 channels/second
Usage
Amateur / Ham radio operators
Features + options
NOAA Wx alert
FM broadcast receive
No Mil-Air and no Trunking
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

Very Good, Very Loud, Good For Price!

RadioShack / Realistic Pro-405, Desktop VHF/UHF Scanner / receiver

Rig is great. Holds all my frequency plus some. Only problem, I've found about it, is that it doesn't give you the range for which the scanner receives, anywhere in the manual or on the box. Other than that, it's a great rig!

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2010
USD 130.00
