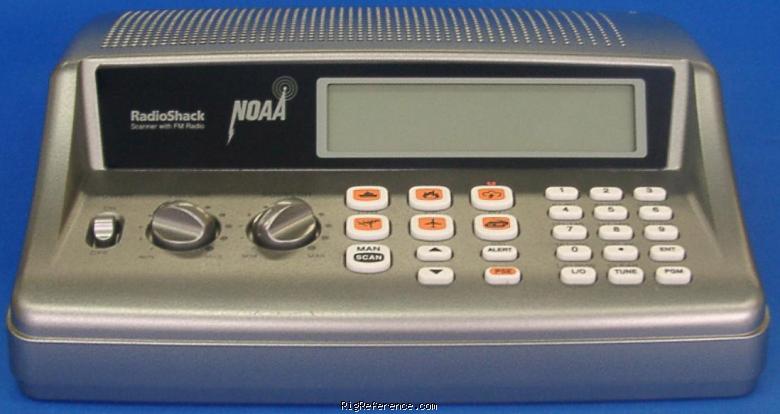

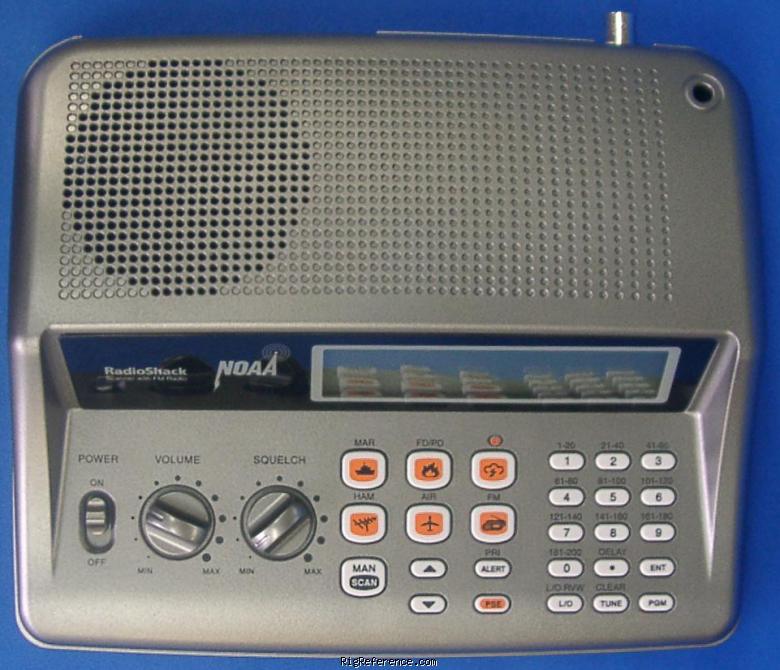

RadioShack / Realistic Pro-405

Desktop VHF/UHF Scanner / receiver

Add a review Add to my shack


Login or Register to upload images

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
200 channels in 20 bank(s) @ 80 channels/second

Receiver

RX-range
29-54 / 87.3-174 / 380-512 MHz (with gaps)
Modulations
FM
Sensitivity
29-54 MHz 0.5 µV
87.3-107.9 MHz ((S+N)/N 30 dB) 1.0 µV
108-136.99166 MHz 1.0 µV
137-174 MHz 0.5 µV
380-512 MHz 0.7 µV
(S+N)/N 20 dB unless noted
Selectivity
+/-8 kHz -6 dB
+/-17 kHz -50 dB
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 kHz
Image rejection
70 dB
Audio output
0.7 W @ 10% THD

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
9V DC
Current drain RX
8 W
TX
-

Physical

Dimensions (w×h×d)
210 × 60 × 175 mm (8.27 × 2.36 × 6.89 in)
Weight
700 gr (1.5 lbs)
Form factor
Base Station
Manufactured
Between 2008 and 20xx

Other features

Usage
Amateur / Ham radio operators
Features + options
NOAA Wx alert
FM broadcast receive
No Mil-Air and no Trunking
Accessories
-
RigReference ID
5027
MPN
RADIOSHACK-/-REALISTIC-PRO-000405

Manuals, diagrams and brochures

No documents available for this particular model.
