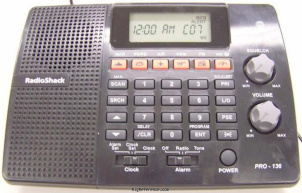

RadioShack / Realistic Pro-136 Desktop HF/VHF/UHF Scanner / receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Non-trunking scanner, made by Uniden.

Frequency range

RX-range
25-512 MHz (with gaps)
TX-range
-
HAM bands
-
Stability
-
Tuning steps
5 / 6.25 / 12.5 / 100 kHz
Filters
-

Receiver

Modulations
AM   FM   W-FM   FM-video
Sensitivity
FM (20 dB S/N at 3 kHz deviation)
28-54: 0.3μV
137-174: 0.4μV
400-512: 0.5μV

AM (20 dB S/N at 60% modulation)
25-27.995: 1.0μV
108-136.9875: 1.1μV
380-399.9875: 1.2μV

WMF (20 dB S/N at 22.5 kHz deviation)
88-107.900: 0.7μV

TV (20 dB S/N at 45 kHz deviation)
59.7500, 65.7500, 71.7500, 81.7500, 87.7500 (in 6 MHz steps): 0.8μV
179.7500, 185.7500, 191.7500, 197.7500, 203.7500, 209.7500, 215.7500
(in 6 MHz steps): 0.8μV
Selectivity
-
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 265.50-60 MHz
2nd: 10.80 MHz
3rd: 450 kHz
Image rejection
60 dB
Audio output
1100 mW

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50 Ω

Electrical

Power requirements
12V DC or 3×AA batteries
Current drain RX
280 mA max
TX
-

Physical

Dimensions (w×h×d)
210 × 75 × 145 mm (8.27 × 2.95 × 5.71 in)
Weight
550 gr (1.2 lbs)
Form factor
Base Station
Manufactured
Between 2008 and 20xx
MPN

Other features

Memories
200 channels in 10 bank(s) @ 125 channels/second
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
