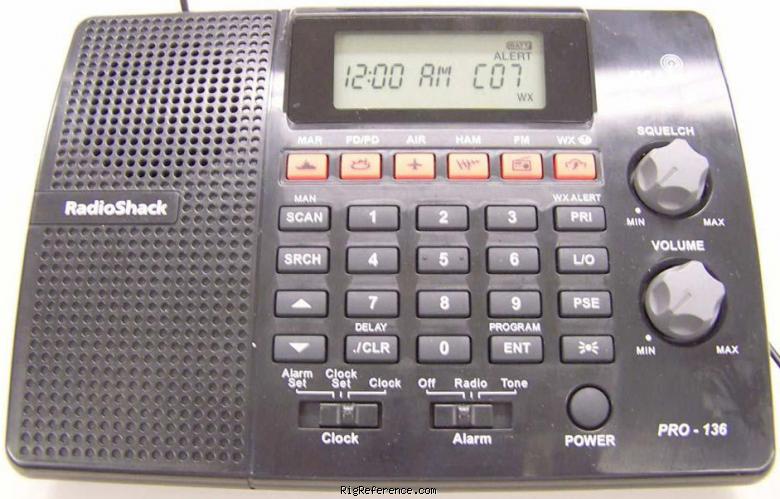

RadioShack / Realistic Pro-136

Desktop HF/VHF/UHF Scanner / receiver

Add a review Add to my shack


Login or Register to upload images

Non-trunking scanner, made by Uniden.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
5 / 6.25 / 12.5 / 100 kHz
Memories
200 channels in 10 bank(s) @ 125 channels/second

Receiver

RX-range
25-512 MHz (with gaps)
Modulations
AM   FM   W-FM   FM-video
Sensitivity
FM (20 dB S/N at 3 kHz deviation)
28-54: 0.3μV
137-174: 0.4μV
400-512: 0.5μV

AM (20 dB S/N at 60% modulation)
25-27.995: 1.0μV
108-136.9875: 1.1μV
380-399.9875: 1.2μV

WMF (20 dB S/N at 22.5 kHz deviation)
88-107.900: 0.7μV

TV (20 dB S/N at 45 kHz deviation)
59.7500, 65.7500, 71.7500, 81.7500, 87.7500 (in 6 MHz steps): 0.8μV
179.7500, 185.7500, 191.7500, 197.7500, 203.7500, 209.7500, 215.7500
(in 6 MHz steps): 0.8μV
Selectivity
?
Filters
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 265.50-60 MHz
2nd: 10.80 MHz
3rd: 450 kHz
Image rejection
60 dB
Audio output
1100 mW

Connections

Antenna
BNC
Impedance
50 Ω
Other
-

Electrical

Power requirements
12V DC or 3×AA batteries
Current drain RX
280 mA max
TX
-

Physical

Dimensions (w×h×d)
210 × 75 × 145 mm (8.27 × 2.95 × 5.71 in)
Weight
550 gr (1.2 lbs)
Form factor
Base Station
Manufactured
Between 2008 and 20xx

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5028
MPN
RADIOSHACK-/-REALISTIC-PRO-000136

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Works great! 1 year ago by kb7aqd

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RadioShack / Realistic Pro-136. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the RadioShack / Realistic Pro-136 is around:

  • USD 2.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2007 USD 20.00 New / Mint kb7aqd
