Morrow MB-565

Mobile Shortwave Transmitter

Specs Manuals (1) Reviews (0) Prices (0) Compare

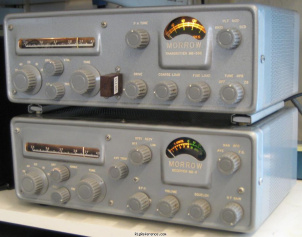

MB-565 with matching MB-6 receiver (Courtesy of K6JCA) - Submitted by elmer

Find Morrow MB-565 rigs and spare parts on eBay

Find the Morrow MB-565 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

The Morrow MB-565 twins with the Morrow MB-6 receiver and is the follow up to the Morrow MB-560. The MB-6 / MB-565 combination forms a very compact communication set, rather special for its time. Morrows are rare these days.

Requires an external power supply. Recommended power supplies include the Morrow RVP-260B and TV-600A or the combined RTV-630.

General characteristics

HAM bands: 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: Continuous
Memories: None

Transmitter

TX-range: 80-10 m
Modulations: -
RF-output: 25 W

Connections

Antenna: SO-239
Impedance: 52-70Ω
Other: -

Electrical

Power requirements: External PSU (6 or 12 V DC / 67.5 V DC, 275 V DC / 300~600 V DC)
Current drain RX: -
TX: ?

Physical

Dimensions (w×h×d): 300 × 178 × 102 mm (11.81 × 7.01 × 4.02 in)
Weight: ?
Form factor: Mobile
Manufactured: Between 1958 and 1959 in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5060
MPN: MORROW-MB-000565
