Morrow MB-565

Mobile Shortwave Transmitter

Specs Manuals (1) Reviews (0) Prices (0) Compare

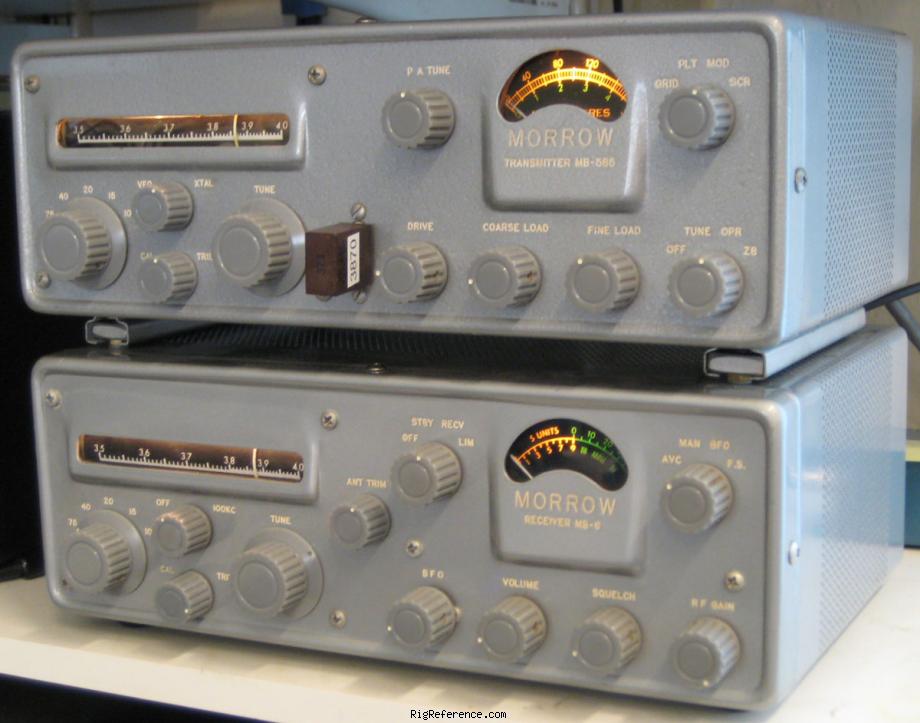

MB-565 with matching MB-6 receiver (Courtesy of K6JCA) - Submitted by elmer

The Morrow MB-565 twins with the Morrow MB-6 receiver and is the follow up to the Morrow MB-560. The MB-6 / MB-565 combination forms a very compact communication set, rather special for its time. Morrows are rare these days.

Requires an external power supply. Recommended power supplies include the Morrow RVP-260B and TV-600A or the combined RTV-630.

General characteristics

HAM bands: 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: Continuous
Memories: None

Transmitter

TX-range: 80-10 m
Modulations: -
RF-output: 25 W

Connections

Antenna: SO-239
Impedance: 52-70Ω
Other: -

Electrical

Power requirements: External PSU (6 or 12 V DC / 67.5 V DC, 275 V DC / 300~600 V DC)
Current drain RX: -
TX: ?

Physical

Dimensions (w×h×d): 300 × 178 × 102 mm (11.81 × 7.01 × 4.02 in)
Weight: ?
Form factor: Mobile
Manufactured: Between 1958 and 1959 in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5060
MPN: MORROW-MB-000565

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Morrow MB565 Instruction Manual PDF - 2.12 MB, submitted by RigReference

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Morrow MB-565. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transmitter equipment, the estimated value of the Morrow MB-565 is around:

USD 71 ~ USD 132

This estimate is based on similar equipment and may not reflect the exact value of this model.
