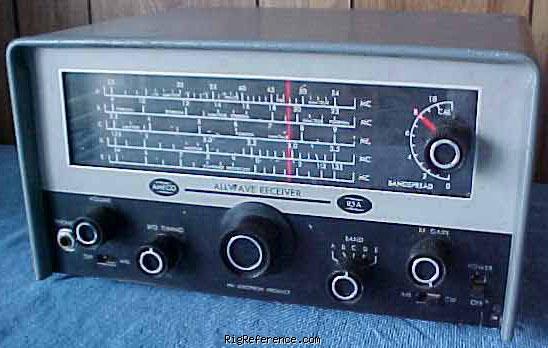

The Ameco R-5A receiver has 5 bands covering .54 to 1.35 MC, 1.35 to 3.5 MCm 3.5 to 9 MC, 9 to 23 MC and 23 to 54 MC. Controls are marked BANDSPREAD, Volume, BFO Tuning, Band selector A,B,C,D,E, and RF GAIN, with an on/off and AM/CW switch.
Matches the Ameco AC-1 transmitter.
General characteristics
- HAM bands
- 80m 40m 20m 15m 6m 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 0.54-54 MHz in 5 bands
- Modulations
- AM CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- Clamps / screws
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 285 × 160 × 230 mm (11.22 × 6.30 × 9.06 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5068
- MPN
- AMECO-R-000005A
