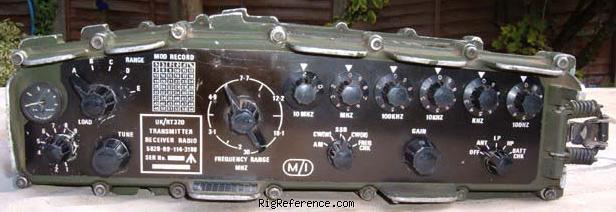

The Clansman PRC-320 is a lightweight HF/SSB radio station designed as part of the British Army's Clansman range of radio equipments for combat use throughout the world. It was used by long-range patrols and Special Forces because of its sky-wave range performance and hand generator system.
The equipment operates in the 2 to 30 MHz band with 100 Hz channel spacing, which gives a choice of 280 000 frequencies. Selection is by decade knobs which control a micro-miniature synthesizer locked to a temperature compensated reference oscillator, giving a high order of stability under all environmental conditions.
The PRC-320 provides SSB (USB), AM, CW (wide) and CW (narrow) facilities. Speech processing and automatic level control are employed to provide whisper speech facilities and a high mean output power.
A transmitter output power of 30 W PEP working into a 2.4 m whip antenna gives the PRC-320 a ground-wave communications range in excess of 40 km by day under normal conditions.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 0.1 kHz
- Memories
- ?
Receiver
- RX-range
- 2-29.999 MHz
- Modulations
- AM CW SSB USB
- Sensitivity
- SSB/CW Narrow: 1.7µV @ 20 dB
AM: 7.5 µV @ 20 dB - Selectivity
- ?
- Filters
- CW wide: 2900 Hz, CW narrow: 400 Hz
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 2-29.999 MHz
- Modulations
- AM CW SSB USB
- RF-output
- SSB/CW: 3/30 W, AM: 7.5 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 20-28V DC
- Current drain RX
- 175 mA
- TX
- 1.2 A
Physical
- Dimensions (w×h×d)
- 330 × 90 × 250 mm (12.99 × 3.54 × 9.84 in)
- Weight
- 11.00 kg (24.3 lbs)
- Form factor
- Portable
- Manufactured
- Between 198x and 19xx in UK
Other features
- Usage
- Military communication
- Features + options
- Range: 40 km by day under normal conditions
- Accessories
- -
- RigReference ID
- 5078
- MPN
- CLANSMAN-PRC-000320
Manuals, diagrams and brochures
- Clansman PRC-320 User Handbook PDF - 18.62 MB, submitted by RigReference
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| bulletproof rig | 11 years ago by zl4te | |
| Great portable rig | 13 years ago by KC5MO |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Clansman PRC-320. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Clansman PRC-320 in Good condition is around:
- GBP 164 ~ GBP 400
These estimates are based on the following prices:
