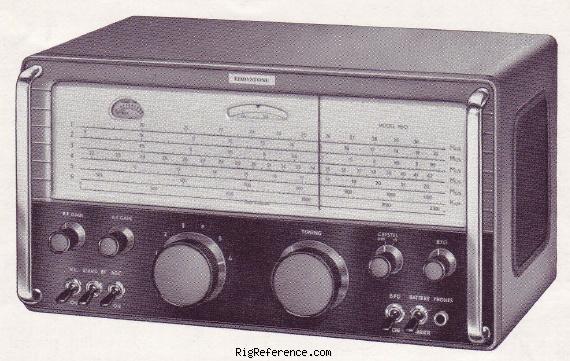

Eddystone 960

Desktop Shortwave receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Eddystone 960 rigs and spare parts on eBay

Find the Eddystone 960 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

The Eddystone 960 is Eddystone's first fully transistorised communications receiver.

General characteristics

HAM bands: ?
Frequency stability: 10 ppm per degree centigrade change in ambient temperature
Tuning steps: ?
Memories: ?

Receiver

RX-range: 0.5-30 MHz in 6 bands
Modulations: AM CW SSB
Sensitivity: 0.5-1.13 MHz: 6 µV
1.13-30 MHz: 3 µV
Selectivity: 5 kHz (-6 dB)
12 kHz (-30 dB)
Filters: ?
Receiver system: Single conversion
IF-frequencies: 465 kHz
Image rejection: 50 dB at 1-6 MHz, 20 dB at 18 MHz
Audio output: 1 W

Connections

Antenna: -
Impedance: 75Ω
Other: -

Electrical

Power requirements: 12V DC
Current drain RX: 210 mA max
TX: -

Physical

Dimensions (w×h×d): 430 × 222 × 279 mm (16.93 × 8.74 × 10.98 in)
Weight: 14.50 kg (32.0 lbs)
Form factor: Base Station
Manufactured: Between 196x and 196x in Great Britain

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5083
MPN: EDDYSTONE-000960

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
