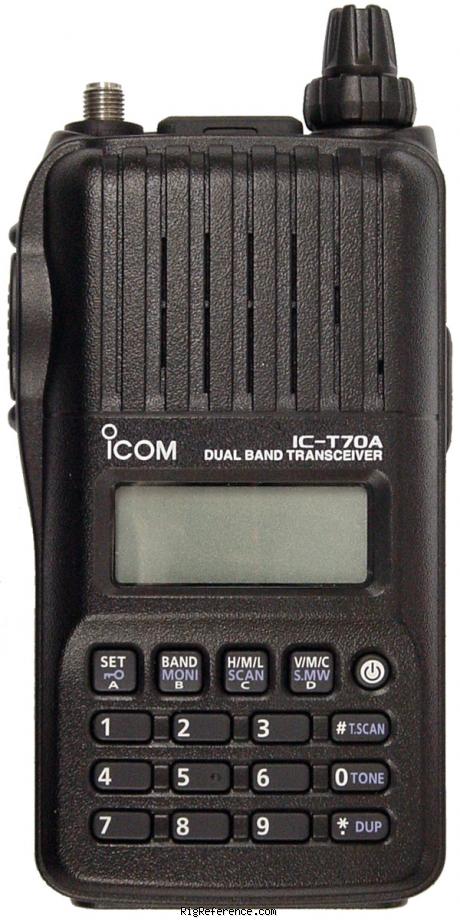

The ICOM IC-T70A/E is a ruggedly built dual band transceiver capable of putting out 5 watts. It comes packed with a long-life battery pack; over 10 hours on a single charge. An optional Li-Ion battery is available to push operation to over 13 hours.

The IC-T70A/E has 302 alphanumeric memory channels, including 50 band edges and 2 call channels. With a maximum of 26 memory banks, you can pick and choose the desired banks for scanning from the 250 memories.

The casing of the IC-T70A/E is dust and water-resistance equivalent
to IP54 and is tested to and passed MIL-STD-810 environmental tests.

The IC-T70A is the U.S.A. version of the ICOM IC-T70E.

General characteristics

HAM bands
2m  70cm
Frequency stability
±2.5 ppm (–20°C to +60°C; –4°F to +140°F)
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 and 200 kHz
Memories
302 channels in 1 bank(s)

Receiver

RX-range
136-174 / 400-479 MHz
Modulations
FM   N-FM
Sensitivity
Less than 0.18 μV (Guaranteed freq. range)
Less than 0.32 μV (Other freq. range)
(1 kHz/3.5 kHz Dev.; 12 dB SINAD)
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 46.35 MHz
2nd: 450 kHz
Image rejection
> 60 dB
Audio output
700 mW @ 10% THD

Transmitter

TX-range
144-148 / 420-450 MHz
Modulations
FM   N-FM
RF-output
High 5.0 W, Mid. 2.5 W, Low 0.5 W (typical at 7.2V)

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
10-16V DC or Icom battery pack
Current drain RX
800 mA max
TX
2.1 A max

Physical

Dimensions (w×h×d)
58 × 111 × 30 mm (2.28 × 4.37 × 1.18 in)
Weight
380 gr (13.4 oz) (with antenna and BP-264)
Form factor
Handheld
Manufactured
Between 2010 and 201x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5088
MPN
ICOM-IC-T000070A

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-T70A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-T70A is around:

  • EUR 53.00
  • USD 66.00 ~ USD 164.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2018 USD 200.00 Used / Mint John Lime III
2013 USD 209.95 Used / Good universal-radio
2013 EUR 169.00 New / Mint thiecom.de
