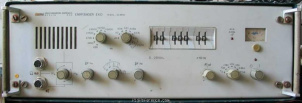

RFT EKD-100

Desktop Shortwave receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Tuning this rigs is done by turning 7 thumb-wheel switches (unlighted), one for each decade: 10+1 mc, 100+10+1 kc, 100+10 Hz.

General characteristics

HAM bands
?
Frequency stability
±0.5 ppm from -10°C to +50°C after 15 minutes warm-up
Tuning steps
0.001 kHz

Receiver

RX-range
14 kHz - 30 MHz
Modulations
AM   W-AM   FM   CW   USB   LSB   FSK
Sensitivity
14-150 kHz
A1: 10 µV (B = ± 50 Hz, (S+N)/N = 10 dB)

0.15-30 MHz
A1: ≤ 1 µV (B = ± 50 Hz, (S+N)/N = 10 dB)
A3J: ≤ 3 µV (B = 2,7 kHz, (S+N)/N = 20 dB)
A3: ≤ 15 µV (B = ± 3 kHz, (S+N)/N = 20 dB)
Selectivity
50 / 250 / 700 / 1500 / 2700 / 3000 / 3400 or 6000 Hz
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
> 80 dB
Audio output
?

Connections

Antenna
-
Impedance
75Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Manufactured
Between 1975 and 19xx in East Germany
Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station

Other features

Memories
?
Usage
Commercial / Land mobile communication
Features + options
?
Accessories
?
MPN
RFT-EKD-000100
