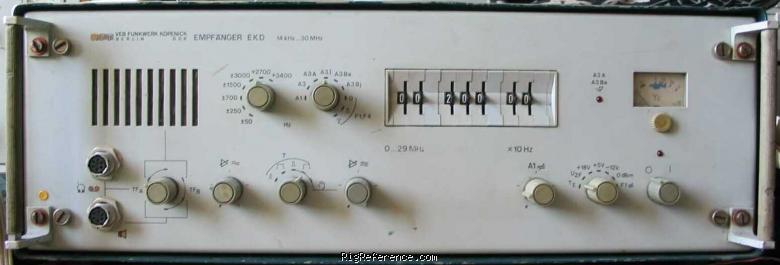

RFT EKD-100

General characteristics

HAM bands

?

Frequency stability

±0.5 ppm from -10°C to +50°C after 15 minutes warm-up

Tuning steps

0.001 kHz

Memories

?

Receiver

RX-range

14 kHz - 30 MHz

Modulations

AM   W-AM   FM   CW   USB   LSB   FSK

Sensitivity

14-150 kHz
A1: 10 µV (B = ± 50 Hz, (S+N)/N = 10 dB)

0.15-30 MHz
A1: ≤ 1 µV (B = ± 50 Hz, (S+N)/N = 10 dB)
A3J: ≤ 3 µV (B = 2,7 kHz, (S+N)/N = 20 dB)
A3: ≤ 15 µV (B = ± 3 kHz, (S+N)/N = 20 dB)

Selectivity

50 / 250 / 700 / 1500 / 2700 / 3000 / 3400 or 6000 Hz

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

> 80 dB

Audio output

?

Connections

Antenna

-

Impedance

75Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Base Station

Manufactured

Between 1975 and 19xx in East Germany

Other features

Usage

Commercial / Land mobile communication

Features + options

-

Accessories

-

RigReference ID

5106

MPN

RFT-EKD-000100

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RFT EKD-100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the RFT EKD-100 is around:

• USD 159 ~ USD 295

This estimate is based on similar equipment and may not reflect the exact value of this model.
