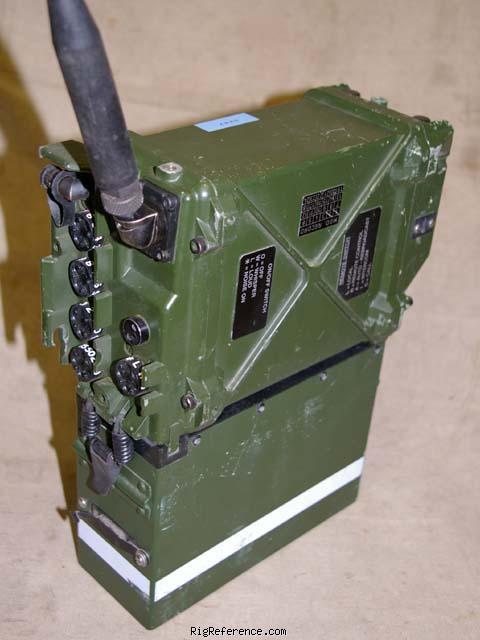

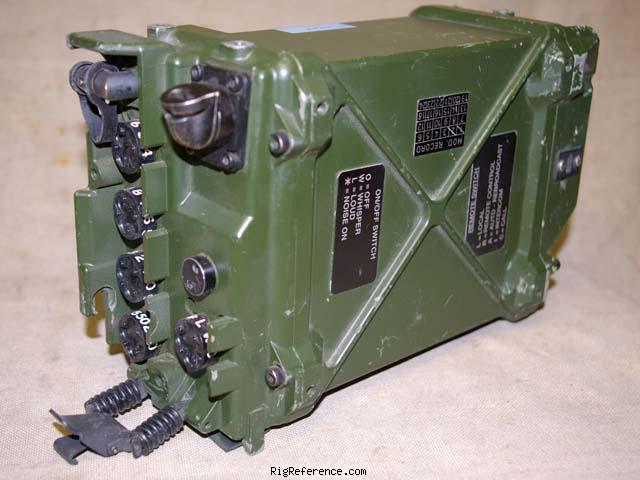

Clansman PRC-351

Handheld VHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

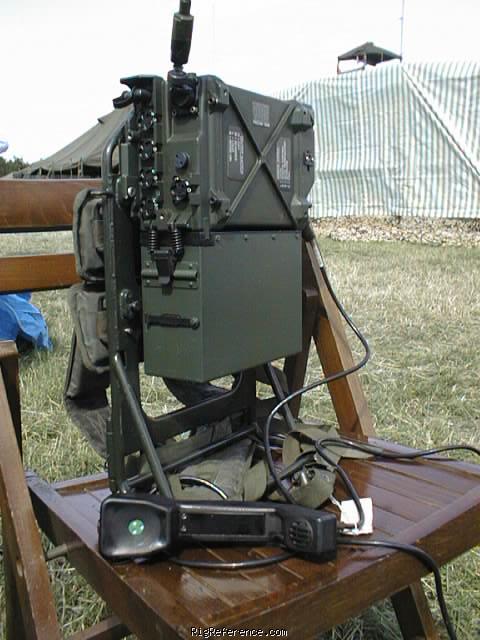

The PRC-351 has been designed to provide command communications at battalion and company level for dismounted troops. It was also used in vehicles by mounted troops. The PRC-351 replaced the older A41 and A42 British VHF radios.

General characteristics

HAM bands
?
Frequency stability
5 ppm per year
Tuning steps
25 kHz

Receiver

RX-range
30-76 MHz
Modulations
N-FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
11.525 MHz
Image rejection
?
Audio output
?

Transmitter

TX-range
30-76 MHz
Modulations
N-FM
RF-Output
4 W

Connections

Antenna
Proprietary (military)
Impedance
50Ω
Other
-

Electrical

Power requirements
24V DC
Current drain RX
?
TX
?

Physical

Manufactured
Between 19xx and 19xx in RACAL BCC Ltd. in England
Dimensions (w×h×d)
?
Weight
?
Form factor
Handheld

Other features

Memories
?
Usage
Military communication
Features + options
Range: 10 km when used with 1.2 meter standard whip antenna in open country side, and up to 20 km when used with a vehicle antenna.
Accessories
?
MPN
CLANSMAN-PRC-000351
