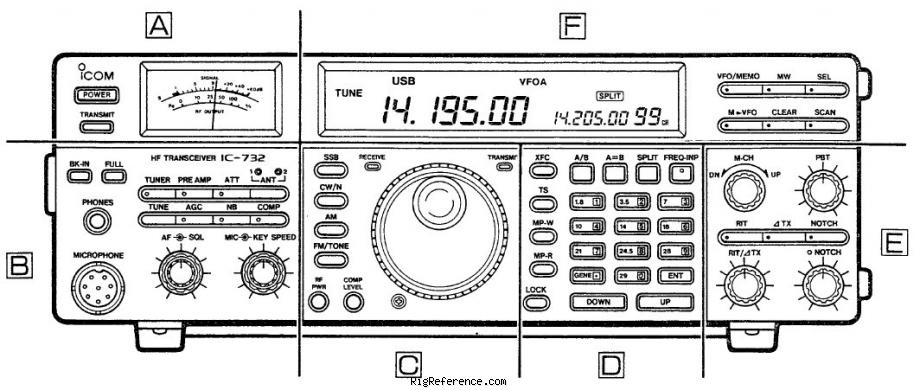

ICOM IC-732M

General characteristics

HAM bands

160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m

Frequency stability

?

Tuning steps

?

Memories

10 channels in 1 bank(s)

Receiver

RX-range

0.5-29.995 MHz

Modulations

AM   FM   CW   SSB

Sensitivity

SSB/CW
1.8-29.995 MHz: 0.16 µV (10 dB S/N)
AM
0.5-1.8 MHz: 13.0 µV (10 dB S/N)
1.8-29.995 MHz: 2.0 µV (10 dB S/N)
FM
28.0-29.7 MHz: 0.5 µV (12 dB SINAD)

Selectivity

SSB/CW: 2.1 kHz (-6 dB), 4.0 kHz (-60 dB)
AM: 6 kHz (-6 dB), 20 kHz (-60 dB)
FM: 12 kHz (-6 dB), 32 kHz (-60 dB)

Filters

?

Receiver system

Triple conversion superheterodyne

IF-frequencies

1st: 69 MHz
2nd: 9 MHz
3rd: 455 kHz

Image rejection

> 70 dB

Audio output

2.6 W @ 8 ohm

Transmitter

TX-range

10-160 m + WARC

Modulations

AM   FM   CW   SSB

RF-output

SSB/CW/FM: 2.5-25 W, AM: 2.5-10 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

4 A

TX

5 A max

Physical

Dimensions (w×h×d)

330 × 111 × 285 mm (12.99 × 4.37 × 11.22 in)

Weight

8.05 kg (17.8 lbs)

Form factor

Base Station

Manufactured

Between 1992 and 199x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

5129

MPN

ICOM-IC-000732M
