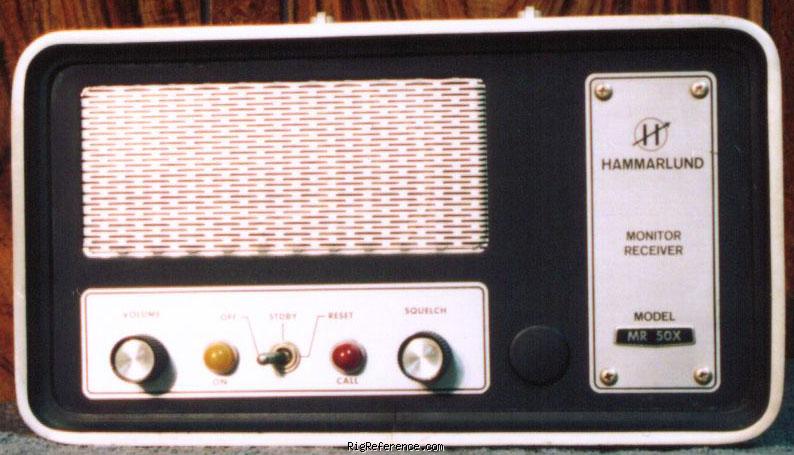

Hammarlund MR-50X

General characteristics

HAM bands

2m

Frequency stability

± .001% (High band) ± .002% (Low-band)

Tuning steps

?

Memories

6 channels in 1 bank(s)

Receiver

RX-range

147-174 MHz

Modulations

FM

Sensitivity

≥ 0.5 µV (High-band)
≥ 0.35 µV (Low-band)

Selectivity

± 5 kHz @ 6 dB
± 17 kHz @ 100 dB

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

1.5 W @ 10% THD, internal speaker

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

Mains (117 V AC, 60 cycles)

Current drain RX

75 W

TX

-

Physical

Dimensions (w×h×d)

330 × 178 × 187 mm (12.99 × 7.01 × 7.36 in)

Weight

7.25 kg (16.0 lbs)

Form factor

Base Station

Manufactured

Between 196x and 19xx in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

5136

MPN

HAMMARLUND-MR-000050X

Manuals, diagrams and brochures

No documents available for this particular model.
