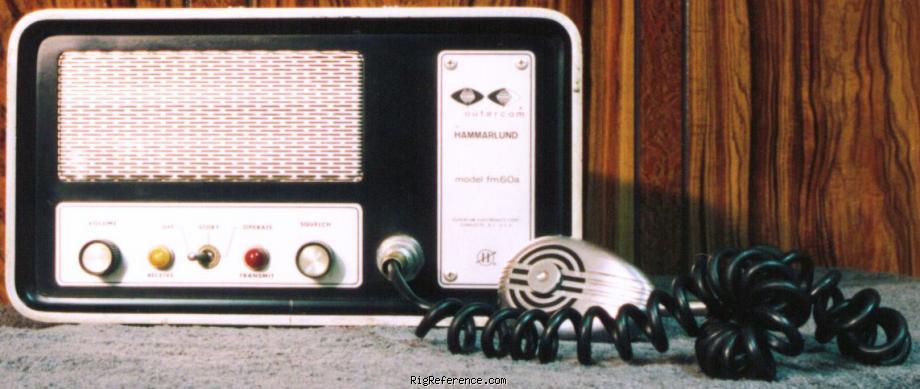

Hammarlund FM-60A

General characteristics

HAM bands

11m (CB)  6m  10m

Frequency stability

0.002%

Tuning steps

Channelized

Memories

None

Receiver

RX-range

25-54 MHz on any single channel, not necessarily the same for Rx and Tx

Modulations

N-FM

Sensitivity

≤ 0.25 µV

Selectivity

5 kHz @ -6 dB, 17 kHz @ -100 dB

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

1.5 W @ 10% THD

Transmitter

TX-range

25-54 MHz on any single channel, not necessarily the same for Rx and Tx

Modulations

N-FM

RF-output

20 W (6 V DC) - 50 W (12 V DC or mains)

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

6 or 12 V DC or Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

330 × 178 × 187 mm (12.99 × 7.01 × 7.36 in)

Weight

9.50 kg (21.0 lbs)

Form factor

Base Station

Manufactured

Between 19xx and 19xx in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

5137

MPN

HAMMARLUND-FM-000060A
