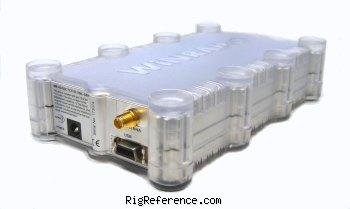

WiNRADiO WR-G31DDC 'Excalibur' Headless HF/VHF Scanner / receiver

 (4.4/5)  Add a review   View all reviews (2)   Add to my shack



Login or Register to upload images

System requirements:
- PC with 2 GHz dual core CPU or faster
- One free USB 2.0 socket
- Windows 2000/XP/Vista/7

An advanced version exists in the form of the WiNRADiO WR-G33DDC 'Excalibur Pro'.

Frequency range

RX-range
9 kHz - 50 MHz
TX-range
-
HAM bands
-
Stability
2.5 ppm (0 to 50 °C)
Tuning steps
0.001 kHz
Filters
Cut-off frequency 1.8 MHz @ -3 dB Attenuation 60 dB min @ 0.5 MHz

Receiver

Modulations
AM   AM-sync   FM   CW   USB   LSB   DSB   ISB   FSK
Sensitivity
AM: -101 dBm (2.00 µV) @ 10 dB S+N/N, 30% modulation
SSB: -116 dBm (0.35 µV) @ 10 dB S+N/N, 2.1 kHz BW
CW: -123 dBm (0.16 µV) @ 10 dB S+N/N, 500 Hz BW
FM: -112 dBm (0.56 µV) @ 12 dB SINAD, 3 kHz deviation, 12 kHz BW, audio filter 300-3000 Hz, deemphasis -6dB/oct
Selectivity
10 Hz - 2 MHz (selectable in 21 coarse steps, fine adjustment in 1 Hz steps)
Receiver system
DDirect-sampling, digitally down-converting software-defined receiver
IF-frequencies
-
Image rejection
100 dB
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
12V DC
Current drain RX
500 mA
TX
-

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Headless
Manufactured
Between 2010 and 20xx
MPN
WINRADIO-WR-G000031DDC-'EXCALIBUR'

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
DSP
Number of memory channels limited by computer memory
USB 2.0 computer interface
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Reviews & stories

Excellent low noise receiver

WiNRADiO WR-G31DDC 'Excalibur', Headless HF/VHF Scanner / receiver

The thing is pretty amazing, actually. Would like if it came with more digital demodulators like RTTY, JT65, pactor, etc.

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2012
USD 870.00

very good sdr

WiNRADiO WR-G31DDC 'Excalibur', Headless HF/VHF Scanner / receiver

Simpel to work with.
Good support.
A whole new way of hf listening.
Good performance on hf as good as the older professional receivers
Plus amazing extra features


Written by hjhamer on Oct 15, 2013

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2011
EUR 950.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the WiNRADiO WR-G31DDC 'Excalibur'. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the WiNRADiO WR-G31DDC 'Excalibur' might be around:

  • EUR 576.00
Price Condition Year User
EUR 950.00 New / Good 2011 hjhamer
