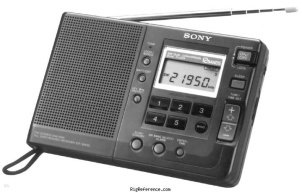

In August 1993 Sony started shipping a new short-wave portable receiver for the budget end of the market. Sony says the SW-30 is the smaller brother of the ICF-SW33... in fact though it is much better value. The radio is a pocket size format covering medium wave, FM stereo from 76 to 108 MHz and 10 short-wave bands between 3700 and 21950 kHz. Stereo on FM is only via the headphones of course. In the UK & France the ICF-SW30L is available with longwave. But this added some US$25 to price of the radio. Note that there short-wave coverage is not continuous...there are some gaps. But Sony has learned from mistakes it made with the ICF-SW-15 & ICF-SW- 22. The short-wave bands run from 3700- 4200, 4650-5150, 5800-6300, 6950- 7450, 9375-10000, 11525-12150, 13375 -14000, 14975-15600, 17475-18100, 21320-21950.
Original price: USD 100.00 or GBP 80.00.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- HF: 1, MW: 9 / 10, FM: 50 kHz
- Memories
- 15 channels in 1 bank(s)
Receiver
- RX-range
- 3700-21950 kHz in 12 bands (with gaps)
76-108 MHz - Modulations
- AM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- Built-in telescopic
- Impedance
- -Ω
- Other
- -
Electrical
- Power requirements
- 4.5V DC (3R6/AA)
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 169 × 112 × 35 mm (6.65 × 4.41 × 1.38 in)
- Weight
- 450 gr (15.9 oz)
- Form factor
- Handheld
- Manufactured
- Between 1993 and 1996 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Sleep timer
Local-DX switch - Accessories
- -
- RigReference ID
- 5162
- MPN
- SONY-ICF-SW000030
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sony ICF-SW30. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
