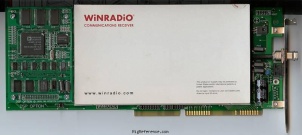

WiNRADiO WR-3150i

Headless HF/VHF/UHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find WiNRADiO WR-3150i rigs and spare parts on eBay

Find the WiNRADiO WR-3150i on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

The WiNRADiO WR-3150i-DSP receiver supersedes the highly successful WiNRADiO WR-3100i model, introducing improved spurious signal rejection,selectivity and other hardware and software improvements. The WR-3150i-DSP receiver puts advanced radio receiver technology directly on a personal computer platform, to create a complete spectrum surveillance system.

This receiver is intended for government, military, security, surveillance, media monitoring and industrial applications.

The frequency range is 150 kHz to 1.5 GHz (for non-government customers in USA, cellular frequencies 825-849 and 869-894 MHz are excluded).

The hardware/software package consists of the receiver card, Windows-based software, a start-up antenna and a user's manual.

The ISA card plugs into the motherboard of an IBM-compatible PC. Up to eight independently operating receivers can be controlled by a single PC - an ideal solution for high-performance multi-channel automatic monitoring systems.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: USB/LSB/CW: 1Hz, FM: 0.001 kHz
Memories: ?

Receiver

RX-range: 0.15-1500 MHz
Modulations: AM N-FM W-FM CW USB LSB
Sensitivity: AM (10dB S/N)
<0.5 MHz: n.sp.
0.5-1.5 MHz 5 µV
1.5-30 MHz 1 µV
30-1000 MHz 1 µV
1-1.5 GHz 1.5 µV
SSB/CW (10dB S/N)
<0.5 MHz: n.sp.
0.5-1.5 MHz 0.9 µV
1.5-30 MHz 0.3 µV
30-1000 MHz 0.3 µV
1-1.5 GHz 0.5 µV
FM-N/FM-W 12dB SINAD
<0.5 MHz n.sp.
0.5-1.5 MHz 0.9 µV
1.5-30 MHz 0.35 µV
30-1000 MHz 0.35 µV
1-1.5 GHz 0.4 µV
Selectivity: SSB/CW: 2.5 kHz @ 6dB
AM: 6 kHz @ 6dB
FM-N: 15 kHz @ 6dB
FM-W: 230 kHz @ 6dB
Filters: ?
Receiver system: Double/Triple conversion + DSP
IF-frequencies: ?
Image rejection: 65 dB typical
Audio output: 200 mW

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: ?
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Headless
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Internal ISA-card
Accessories: -
RigReference ID: 5167
MPN: WINRADIO-WR-003150I
